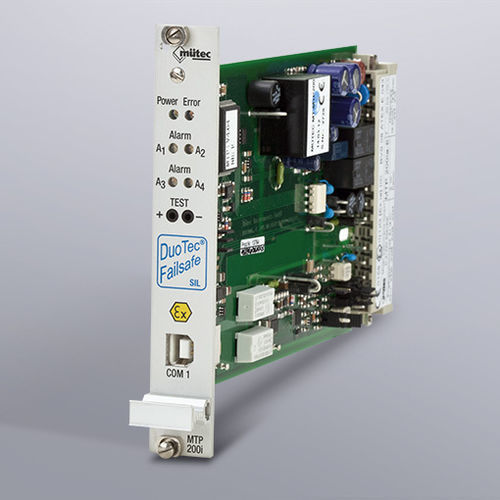

SIL2 universal transmitter MTP 200-E
Add to favorites
Compare this product
Characteristics
- Type
- SIL2
Description
SHORT DESCRIPTION
OPTION "IEXA"
TECHNICAL SPECIFICATIONS
- Universal measuring transmitter in DuoTec-Failsafe Technology with self-monitoring
- Certified according to IEC 61508 SIL2
- Input: Resistor and Pt100 with 2-, 3- and 4-wire switch, all types of thermocouple, current, voltage
- Output: 0/4-20 mA, 1-5/0-10 VDC, square rootable
- 4 individually adjustable limit values (2 relays contact outputs, 2 transistor output)
- 1 service alarm
- Safe galvanic separation between auxiliary energy, input and output
- Executed on Namur recommendation NE 21
- RS 485-interface at the edge of the measuring device
- PC-connection via MÜTEC interface cable at the front
- Configuration ON-LINE by MÜTEC-WINSMART software
- Auxiliary energy: 24VDC/AC
- Form of construction: 19\", 4TE, 3HE
OPTION "IEXA"
- Input II (1) G Ex ia IIC (Zone 0)
TECHNICAL SPECIFICATIONS
- Model: MTP 200-E
- Technology: DuoTec-FailSafe with self-monitoring
- Safety / Certification: IEC 61508 SIL2
- Inputs supported: Resistor, Pt100 (2-/3-/4-wire), all thermocouple types, current, voltage
- Outputs: 0/4-20 mA, 1-5 V, 0-10 VDC; output signal square rootable
- Limit/alarm outputs: 4 adjustable limit values (2 relay contacts, 2 transistor outputs) and 1 service alarm
- Galvanic isolation: Safe galvanic separation between auxiliary power, input and output
- Standards/recommendations: Executed according to Namur recommendation NE 21
- Interfaces: RS-485 serial interface on the device edge; front PC connection via MÜTEC interface cable
- Configuration: On-line configuration with MÜTEC-WINSMART software
- Auxiliary power: 24 V DC / AC
- Mechanical: 19\" rack mounted, 4TE width, 3HE height
- Ex option: IEXA — Input II certified G Ex ia IIC for Zone 0
- Available documentation: product datasheet, manual and SIL/ATEX certificates (see product documents)
