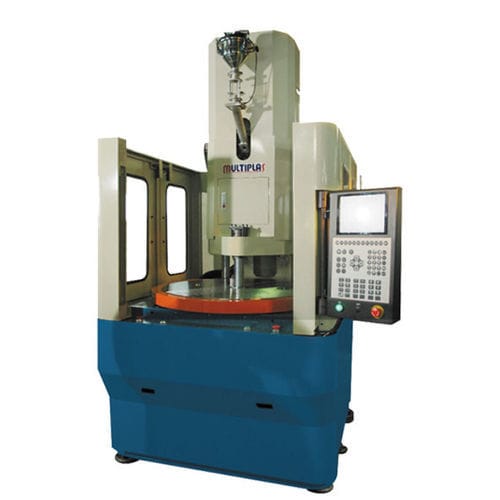

Vertical injection molding machine V3E-R-55T

electricfast-cycling

No oil pollution and low noise, particulary suitable for clean-room production. Full electric system reduces energy consumption by 40~70%, and yet ensures fast speed, high precision, and excellent stability of operations. Unique toggie mechanism evenly distributes clamping force over the mould surface. Solid and low-inertial structure designed for high-speed injection particularly suitable for precision moulding. Screw Diameter - mm - Ø25 Injection Volume - cm3 - 59 Injection Pressure - kg/cm2 - 2000 Injection Speed - mm/sec - 300 Mould Thickness - mm - 150~300 Mould Opening Stroke - mm - 250 Maximum Daylight - mm - 270 Diameter of Rotary Table - mm - Ø980
