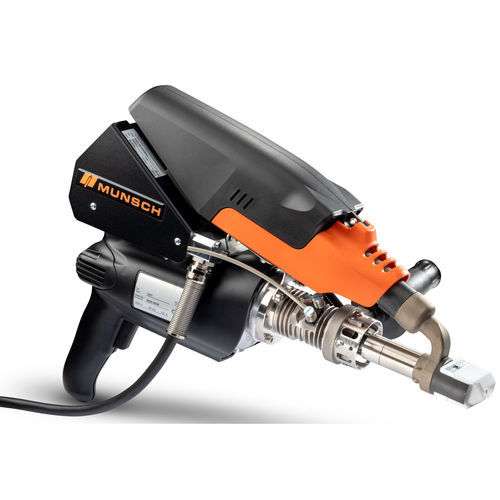

Plastics welding hand extruder MAX-18-Compact

Our shortest version of the MAX extruders. With a total length of just approx. 450 mm and a side-mounted power cable, it's ideal for even the tightest spaces. Almost as light and quiet as the MAX-18, it also features a 360° rotating welding shoe and a continuously adjustable handle. With this digitally controlled extruder, you can effortlessly weld material up to 15 mm or even 20 mm thick. Integrated high-performance LEDs ensure good illumination in the work area. When not in use, the device goes into standby mode, significantly reducing noise levels and saving up to 50% energy. Once the device has completely cooled down, the fan switches off completely. - Length-optimized design for particularly narrow applications - Brushless preheating blower with standby-function and automatic shut-down - Comfortable user menu with automatic temperature setting - Dual beam high-power LEDs - Three materials preset, more program spaces free to set your own material - 360° turnable welding shoe - With display / menu - Temperatures digitally adjustable - WiFi-connectivity Technical Specifications: - Max. welding capacity: 2.2 kg/h (Ø 4mm), 1.3 kg/h (Ø 3 mm) - Welding material: PP / PE / PVDF - Material type: Round rod Ø 3 / 4 mm - Application range: Thicknesses from 4 – 20 mm - Weight: 5.5 kg - Length: 460 mm - Electronic Speedcontrol: Yes - Mass heating: 400 W - Powerbox needed: No - Preheating: 2300 W - Frequency: 50Hz & 60Hz - Available in 115 or 230V Includes: - 1 welding shoe fillet 10mm (G07684) - 1 welding shoe film 25mm (G07680) - 1 welding shoe unshaped (G07692) - Machine stand - Tool and maintenance kit - Transport case
