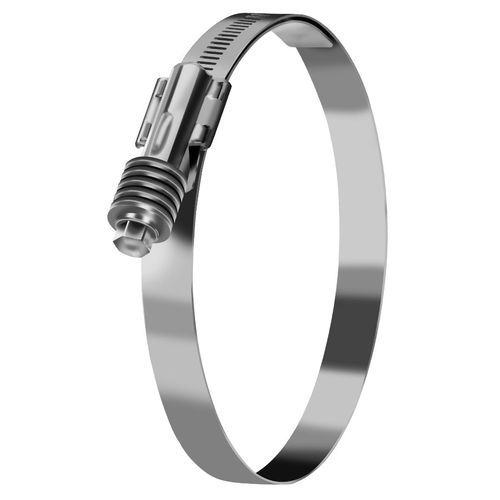

Steel band clamp SLHD - SLF series

stainless steel

Stack Drive Constant Tension Worm Drive Clamps SLHD Series – Heavy Duty Constant Tension Worm Drive Clamp 5/8” wide band SLF Series – Constant Tension Worm Drive Clamp 9/16” wide band Murray Constant Tension Worm Drive clamps compensate for changes in temperature, ensuring a leak-free performance. Bellville washer “stack” provides spring action to accommodate increases/decreases in joint diameter, preventing loosening and loss of clamp load due to temperature fluctuations. Typical uses are in heavy duty truck, high performance automotive, marine, and severe duty industrial applications. SLHD Series Material – Band, Housing and Washers are 300 grade stainless steel, and Screw is 400 series stainless steel. Other material combinations available upon request. Band width is 5/8”. Liner is a welded shield to prevent soft hose from protruding through the band slots. SLF Series Material – Band and Housing are 304 stainless steel, Washers are 301 stainless steel, and the screw is 400 series stainless steel. Other material combinations available upon request. Band width is 9/16”. Liner is an extended band to prevent soft hose from protruding through the band slots.
