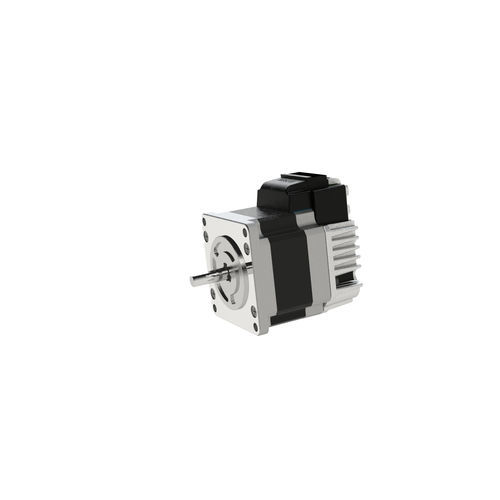

Servomotor with integrated controller CM3M-23S50AAC24 Vfor industrial applications
Add to favorites
Compare this product
Characteristics
- Type
- AC
- Voltage
- 24 V
- Applications
- for industrial applications
- Other characteristics
- with built-in encoder, with integrated controller
- Power
60 W
(0.08 hp)- Torque
Max.: 0.65 Nm
(0.479415 ft.lb)Min.: 0.52 Nm
(0.383532 ft.lb)- Rotational speed
5,000 rpm
(31,415.9265 rad.min-1)
Description
Multi-Axis Control via Modbus RTU (RS485)
CM3M is an integrated servo system including drivers, encoders and other components required for motor control. The CM3M supports connection of up to 32 axes as slave units and uses a PLC or PC as the master controller, enabling a driverless, compact installation that shortens equipment deployment.
Wire Saving
CM3M requires only power and communication cables, eliminating extensive wiring and simplifying installation. This approach reduces wiring complexity and cost compared with conventional systems.
Grouping Function
When multiple devices share the same motor configuration, grouping allows simultaneous control of those devices within the same system.
Specifications / Technical data
CM3M is an integrated servo system including drivers, encoders and other components required for motor control. The CM3M supports connection of up to 32 axes as slave units and uses a PLC or PC as the master controller, enabling a driverless, compact installation that shortens equipment deployment.
Wire Saving
CM3M requires only power and communication cables, eliminating extensive wiring and simplifying installation. This approach reduces wiring complexity and cost compared with conventional systems.
Grouping Function
When multiple devices share the same motor configuration, grouping allows simultaneous control of those devices within the same system.
Specifications / Technical data
- Communication protocol: Modbus RTU (RS485)
- Integrated servo system including drivers and encoders
- Supports up to 32 axes as slave units
- Operates with PLC or PC as master controller
- Driverless, compact setup to shorten equipment deployment
- Requires only power and communication cables (reduces wiring complexity and cost)
- Grouping function: simultaneous control of multiple devices with same motor configuration
Catalogs
No catalogs are available for this product.
See all of Muscle Corporation‘s catalogsOther Muscle Corporation products
Cool Muscle CM3M
