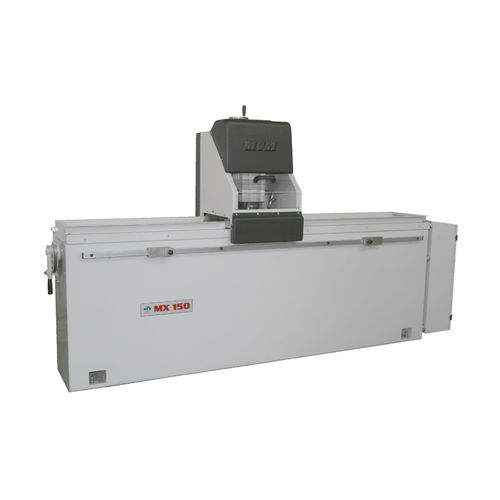

Flat grinding machine MX150DB

for bladesverticalPLC-controlled

Product description
The MX150DB grinding machine with mechanical clamping system for Doctor Blades is designed for re‑grinding creping and scraping blades used in tissue paper production (toilet paper, paper towels, napkins, facial tissues). The MX150DB is suited to large paper producers and specialised resharpening centres and can sharpen up to 10 Doctor Blades simultaneously.

Multimedia and documentation
Product and tutorial videos and a multilingual product brochure are available on request.

Technical features

• Grinding motor 5.5 kW with Ø178 mm segmented grinding wheel
• Vibration‑free, low‑noise grinding head and spindle
• Carriage drive via toothed belt for smooth translation
• Hardened, ground carriage guides protected by replaceable steel strips
• High coolant flow with two nozzles on either side of the wheel
• PLC control with programmable automatic cycle and spark‑out
• Adjustable carriage travel and variable speed 1–20 m/min
• Mechanical clamping for sharpening Doctor Blades in packs (standard clamp up to 15 mm)
• Bayonet quick change for grinding wheel

Options (upon request)

• Siemens PLC
• Mechanical clamping for packs up to 25 mm

Technical specifications

• Model: MX150DB
• Application: re‑grinding of creping and scraping blades for tissue paper
• Capacity: up to 10 Doctor Blades simultaneously (standard clamp up to 15 mm; optional up to 25 mm)
• Grinding motor: 5.5 kW
• Grinding wheel: Ø178 mm segmented
• Carriage speed: variable 1–20 m/min
• Carriage drive: toothed belt
• Carriage guides: hardened, ground, with replaceable steel strips
• Coolant system: high flow with two nozzles either side of the wheel
• Control: PLC with programmable automatic cycle and spark‑out (Siemens optional)
• Wheel change: bayonet quick change
