Circular saw blade grinder SM series

electricfor circular knives

Product description

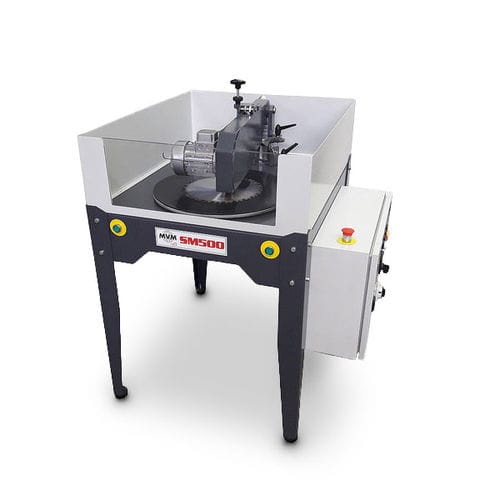

The SM500 / SM800 is a sanding machine designed for surface sanding and cleaning of bevelled circular knives and saw blades prior to re-grinding or remounting. It removes oxidation, resin, incrustations and thermal discoloration while restoring the blade surface to its original thickness without altering geometry. The SM800 version accepts blades up to Ø800 mm to cover larger diameters.

Features

• Turntable motor power: 0.25 kW
• Arm feed motor power: 0.06 kW
• Grinding wheel diameter: Ø200 mm
• Abrasive belt dimensions: 628 × 35 mm
• Grinding wheel speed: 1500 rpm
• Turntable speed: 110 rpm
• Maximum blade outer diameter: 500–800 mm (SM500 / SM800)
• Minimum required compressed air pressure: 6–7 bar
• Overall dimensions (WxDxH): 100 × 100 × 130 cm

Applications and benefits
Surface sanding and cleaning of bevelled circular discs and toothed blades; removal of oxidation, resin and thermal stains; restores original disc thickness, improves blade mounting and re-grinding quality, and reduces finishing time in production workflows.

Technical specifications

• Model: SM500 (SM800 version for blades up to Ø800 mm)
• Turntable motor: 0.25 kW
• Arm feed motor: 0.06 kW
• Grinding wheel: Ø200 mm
• Abrasive belt: 628 × 35 mm
• Grinding wheel speed: 1500 rpm
• Turntable speed: 110 rpm
• Blade diameter range: 500–800 mm
• Required compressed air: 6–7 bar
• Machine dimensions (WxDxH): 100 × 100 × 130 cm
