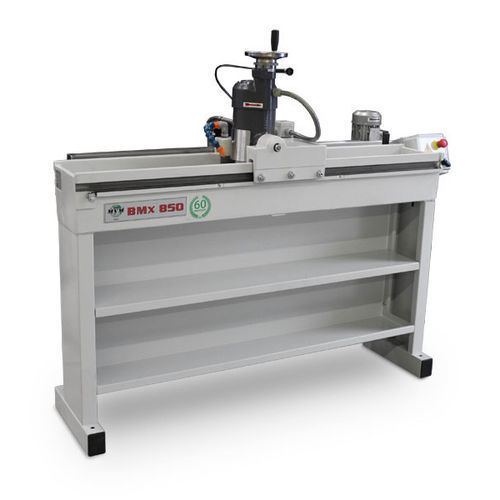

Surface grinding machine BMX series

for planer knivesverticalautomatic

Description
The BMX650 / BMX850 grinding machine is designed for precise sharpening of planer knives and hard-metal (carbide) profile knives used in woodworking and industrial wood processing. Available in grinding lengths of 650 mm and 850 mm, it features automatic grinding wheel downfeed and a mechanical rotary table with T-slot and 0° reference. A mechanical clamping kit for planer knives is supplied; optional accessories extend compatibility to carbide inserts and disposable knife systems.

Applications

• Planer knives (mechanical clamping kit included)
• Carbide/profile knives (compatible with optional high‑power open‑field magnetic chuck)
• Disposable knife systems (Tersa, Centrofix, Variplan, Terminus, Weinig, Sinus) using optional mechanical clamping tools

Features

• Grinding lengths: 650 mm and 850 mm
• Automatic grinding wheel downfeed (minimum increment 0.01 mm)
• Mechanical rotary table with T‑slot and 0° reference
• Variable carriage speed: 1–11 m/min
• Carriage stroke reduction
• External coolant tank with pump
• Mechanical clamping kit for planer knives included
• Optional high‑power open‑field magnetic chuck and optional mechanical clamping tools for disposable knives

Optional accessories

• High‑power open‑field magnetic chuck for carbide inserts
• Mechanical clamping tools for disposable knife systems (Tersa, Centrofix, Variplan, Terminus, Weinig, Sinus, Kanefusa)

Technical specifications

• Model: BMX650 / BMX850
• Intended use: sharpening planer knives and hard‑metal (carbide) knives
• Grinding length options: 650 mm and 850 mm
• Grinding wheel downfeed: automatic (min increment 0.01 mm)
• Chuck: mechanical rotary table with T‑slot and 0° reference
• Carriage speed: 1–11 m/min
• Cooling: external tank with pump
• Included accessories: mechanical clamping kit for planer knives
• Optional accessories: magnetic chuck; mechanical clamping tools for disposable knives
• Primary industries: woodworking, joinery, industrial wood processing
