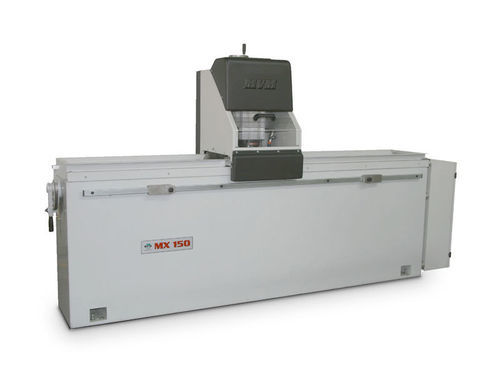

Chipper knive sharpening machine MX150

for straight bladePLC-controlledautomatic

Product overview
The MX150 is an industrial knife grinder designed for automatic sharpening of a wide range of blades. It is available in seven working-length versions (1000, 1500, 2000, 2500, 3000, 3500, 4500 mm) and includes a mini-PLC as standard to manage automatic grinding cycles.

Applications

• Chipper and wood-processing knives
• Granulator and recycling blades
• Veneer and peeling knives
• Paper and carton cutting blades
• Guillotine and slitting knives

Main features

• Mini-PLC control for automatic downfeed, programmable work cycles and spark-out
• Grinding wheel motor 5.5 kW (7.5 HP) with segment wheel Ø178 mm (standard)
• Quiet, vibration-free grinding head
• Carriage drive via toothed belt for smooth translation
• High-flow coolant delivery to the workpiece
• Magnetic chuck (thin-polarity option available)
• Variable carriage speed 1–20 m/min (slow-speed option 0.3 m/min)
• Switch for carriage run adjustment

Options (on request)

• Siemens PLC
• Thin-polarity magnetic chuck 12/14 mm
• 4-pole grinding motor with segment wheel Ø200 or Ø250 mm
• Grinding wheel dresser (diamond)
• Magnetic coolant cleaner with rotating discs
• Coolant cleaner with paper filter (manual or automatic)
• Edge reference bar
• Angular divisor/ indexing for magnetic chuck ±90°

Technical specifications

• Model: MX150
• Working lengths available: 1000, 1500, 2000, 2500, 3000, 3500, 4500 mm
• Grinding wheel motor: 5.5 kW (7.5 HP) standard
• Segment wheel diameter: Ø178 mm (standard); Ø200/Ø250 mm optional
• Grinding wheel downfeed resolution: from 0.001 mm per pass (programmable)
• Carriage speed: variable 1–20 m/min (0.3 m/min option)
• Control: mini-PLC standard (Siemens PLC available on request)
• Drive: carriage via toothed belt
• Chuck: magnetic chuck (thin-polarity 12/14 mm available)
• Coolant: high-flow delivery; coolant cleaner options available
