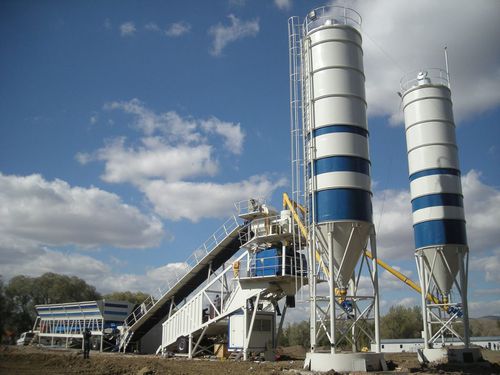

MVS-130MX model is the best choice for mass concrete production on temporary work sites.
Quick and easy installation (only 1-2 days)
Cost-effective transportation (the main unit can be transported by one truck trailer)
Due to the special design, it can be installed on a confined space
Quick and easy jobsite relocation
Low foundation cost (installation is on a flat concrete surface)
Minimizes the concrete transportation cost and environmental impact as well
Easy maintenance and low operating cost
High production performance with optimized automation system
Batch Count - 40 - cycle/hr
Mixer Capacity(compacted) - 3 - m3
Mixer Capacity - 4.5 - m3
Mixer Motor Power - 2.55 - kW
Aggregate Comparments Qty - 4 - Ea.
Aggregate Comparments Capacity - 30 - m3
Aggregate Weighing Conveyor - 1.000×13.000 - mm
Mixer Feeding System - 1.000×16.500 - mm
Aggregate Weighing - 7.000 - kg
Cement Weighing - 1.750 - kg
Water Weighing - 1000 - lt
Additives Weighing - 40 - kg
Cement Screw Conveyor - 273×10.500 - mm
Cement Silos - 2-4 - Ea.
Cement Silo Capacity - 50-75-100-150-200-250 - tons
