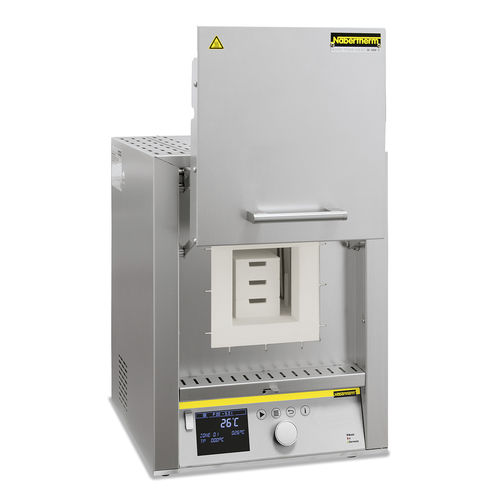

Chamber furnace LHT series

sinteringelectrichigh-temperature

Designed as tabletop models, these compact high-temperature furnaces have a variety of advantages. The first-class workmanship using high-quality materials, combined with ease of operation, make these furnaces all-rounders in research and the laboratory. These high-temperature furnaces are also perfectly suited for the sintering of technical ceramics, such as zirconium oxide dental bridges. Standard Equipment • Tmax 1600 °C, 1750 °C, or 1800 °C • Recommended working temperature 1750 °C (for models LHT ../18), increased wear and tear must be expected in case of working at higher temperatures • High-quality molybdenum disilicide heating elements • Dual shell housing made of textured stainless steel sheets with additional fan cooling for low surface temperature • Exclusive use of insulation materials without categorization according to EC Regulation No. 1272/2008 (CLP) • Adjustable air inlet opening, exhaust air opening in the roof • Type B thermocouple • Controller P470 (50 programs with each 40 segments) • Defined application within the constraints of the operating instructions • NTLog Basic for Nabertherm controller: recording of process data with USB-flash drive
