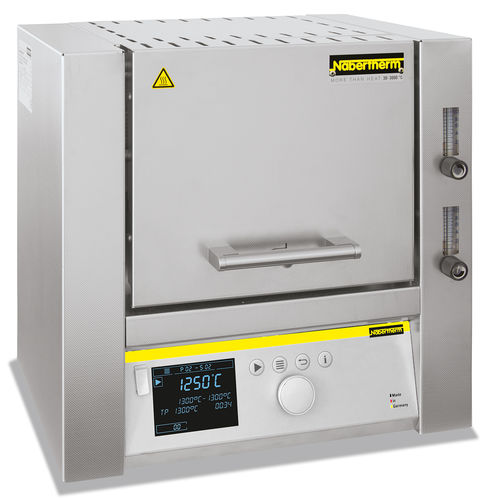

Sintering furnace LT 02/13 CR

chamberbellelectric

The sintering furnace LT 02/13 CR is perfectly suited for sintering of cobalt-chromium restorations. The blanks are placed in a special sintering bell and will be heat-treated under argon. The specific design in combination with sintering pearls provides for good sintering results in a nearly oxygen-free atmosphere at very low argon consumption. The system is open and can be programmed for various materials up to sintering temperatures of 1300 °C. Two pre-installed sample programs, which can be adjusted individually. Furthermore, the sintering furnace LT 02/13 CR is designed for a single-phase connection. • Single-phase connection • Dual shell housing made of textured stainless steel sheets with additional fan cooling for low surface temperature • Exclusive use of insulation materials without categorization according to EC Regulation No 1272/2008 (CLP). This explicitly means that alumino silicate wool, also known as “refractory ceramic fiber” (RCF), which is classified and possibly carcinogenic, is not used • Gas supply system with solenoid valve and flow meter • Forced cooling system with compressed air possible • Sintering bell with good sealing for sintering up to 30 single crowns under argon • Sintering pearls, Ø 1,25 mm (200 g) included in delivery scope • Special tongs included in the delivery scope • Type S thermocouple • Freely programmable controller C550 allows for automatic temperature control and switching of the gas flow • Switching system with solid-state-relays to switch the heating • Possibility to set two gas quantities for optimal adjustment to the sintering process
