melting furnace / pouring / chamber / gas
K, KC series

{{requestButtons}}

Characteristics

  • Function:

    melting, pouring

  • Configuration:

    chamber

  • Heat source:

    gas

  • Other characteristics:

    graphite, compact, laboratory, large-size

  • Capacity:

    Max.: 3 l (0.8 gal)

    Min.: 0.8 l (0.2 gal)

  • Maximum temperature:

    Max.: 1,500 °C (2,732 °F)

    Min.: 1,000 °C (1,832 °F)

Description

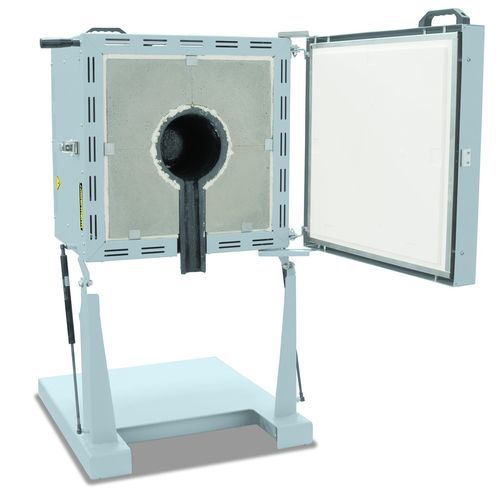

These compact melting furnaces for the melting of non-ferrous metals and alloys are one of a kind and have a number of technical advantages. Designed as tabletop models, they can be used for many laboratory applications. The practical counter balanced hinge with shock absorbers and the spout (not for KC) on the front of the furnace make exact dosing easy when pouring the melt. The furnaces are available for furnace chamber temperatures of 1000, 1300, or 1500 °C. This corresponds to melt temperatures of about 80-110 °C lower.

Tmax 1000 °C, 1300 °C, or 1500 °C, with melt temperature about 80 - 110 °C lower
Crucible sizes of 1, 2, or 4 liters
Crucible with integrated pouring spout of iso-graphite included with delivery
Spout (not for KC), mounted at the furnace for exact pouring
Compact bench-top design, simple emptying of crucible by tiltiing system with gas damper
Crucible for heating of furnace insulated with a hinged lid, lid opened when pouring
