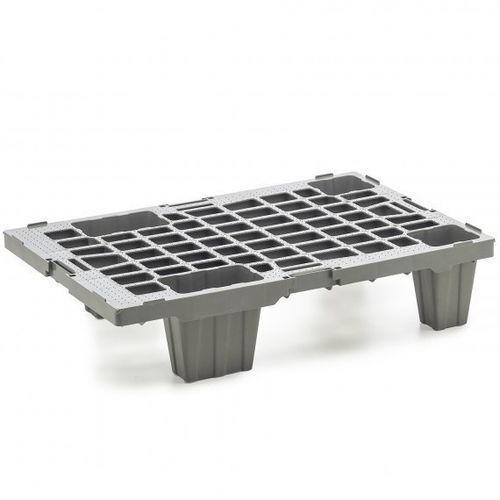

Recycled plastic quarter-size pallet BASIC

ISOtransportstorage

Product description
The new POS display pallet is specially designed to set up cardboard POS displays, as box or floor stand display. It includes a new fixation system called Easy Fix. This system reduces the order preparation time, guarantees the stability of the box and improves the look of the products in the point of sales, thus that improves the forecast of sales. This pallet also includes the two traditional fixation systems through 2 notches that can be used.

Sustainability
By using this product, you are contributing to the direct recycling of 30 plastic packages, preventing them from ending up in landfill or in the environment.
Furthermore, with each use of this product you are preventing the emission of tonnes of CO2 into the atmosphere during its transport throughout its useful life.

Technical data
Reference: BASIC 0604-O4
Available materials / temperature range: 0º/40ºC [32º/104ºF]
Dimensions: 600x400x135 mm
Stacked height: 35 mm
Weight: 1.2 kg
Rims: 4 mm
Static load: 700 kg
Dynamic load: 250 kg
Rack load: - kg

Logistic data
20': 2.800
40': 5.880
40' HC: 6.930
45': 8.710
Tauliner: 8.710
Mega: 9.880
Jumbo: 11.400

Advantages

• Corners prepared for optimum shrinkage
• Optimized height
• Ideal pallet for promotional actions and use as a Display Box

Options

• Customizable colour
• Engraved logo
• Version available without Rims
• Logo printing

Iconography / Features

• Temperature rating: 0º/40ºC [32º/104ºF]
• Open
• 2-ways
• Dark gray color
• Nestable
• Reusable product

Notes
Values indicated are indicative and based on practical experiences (ISO tests) with a standard load, uniformly distributed, compact and stable. Different load conditions produce different values that should be checked at the customer's request. Due to the intrinsic characteristics of recycled material, dimensions and weight may present tolerances. Dimensional tolerances according to DIN ISO 2768-V. Weight tolerances: +/- 4%. Naeco reserves the right to modify any information herein without prior notice.

Caractéristiques / spécifications techniques

• Reference: BASIC 0604-O4
• Denomination: Display Pallet 600x400
• Dimensions (LxWxH): 600x400x135 mm
• Stacked height: 35 mm
• Weight: 1.2 kg (weight tolerances +/-4%)
• Material temperature range: 0º/40ºC [32º/104ºF]
• Static load: 700 kg
• Dynamic load: 250 kg
• Rims: 4 mm (option: version without rims available)
• Color: Dark gray (custom colours available)
• Fixation systems: Easy Fix + 2 traditional notches
• Nestable design; optimized for POS display use
• Sustainability: uses recycled material (30 recycled packages in manufacturing); RecyClass certified for recyclability
