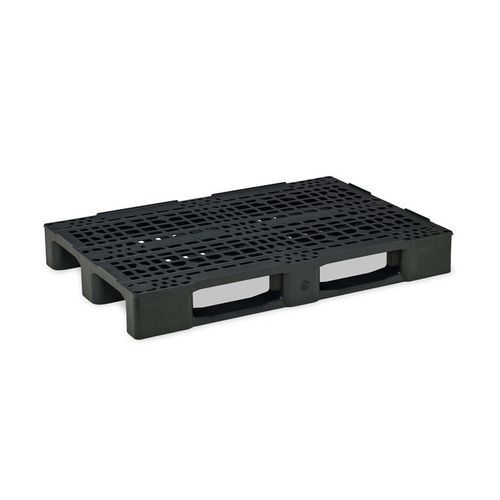

Plastic pallet MASTER 1208-O3

recycled plasticEuroopen

Product description
One-piece Euro standard logistic pallet with 3 runners, designed for reuse and moderate loads across multiple sectors. Compatible with all standard handling equipment and available without rims, with 7 mm rims or with 22 mm perimeter rims.

Sustainability
This pallet is manufactured using recycled material equivalent to preventing 310 plastic packages from going to landfill for the MASTER 1208-O3. Reuse of the pallet reduces CO2 emissions over its service life during transport and handling.

Technical data
Reference: MASTER 1208-O3
Materials / features: operating temperature 0º/40ºC [32º/104ºF], open (4-ways), anti-slip stripes, black color (standard), special rims available, anti-slip pins under board, reusable product

Dimensions / Handling
Dimensions table:
Reference | Dimensions | Stacked Height | Weight | Rims | Static load | Dynamic load | Rack load
MASTER 1208-O3 | 1.200×800×150 mm | 150 mm | 12.40 kg | 7 mm (option: none or 22 mm) | 5,000 kg | 1,500 kg | 600 kg

Logistic data (units per container)
20' | 165
40' | 375
40' HC | 425
45' | 561
Tauliner | 561
Mega | 627
Jumbo | 722

Advantages

• Suitable for racking
• Anti-impact perimeter
• Corners prepared for optimal shrinkwrapping
• Optimized height for logistics
• Surface with smooth apertures

Options

• Engraved logo
• EAN, QR code, RFID, number marking
• Metal reinforcement possibility (3 tubes)
• Without rims, 7 mm rims or 22 mm rims
• Anti-slip stripes
• Anti-slip pins under board

Iconography & key features

• Temperature range: 0º/40ºC [32º/104ºF]
• 4-ways handling
• Anti-slip stripes and pins under board
• Black color (standard)
• Special rims available
• Reusable product / recycled packaging used in manufacture

Notes
The values indicated are indicative and based on practical experience such as ISO tests with a standard, uniformly distributed, compact and stable load, consolidated at room temperature (20ºC [68ºF]). Different load conditions may produce different values; checks can be provided on request. Any deterioration or breakage can change these results.
Due to intrinsic characteristics of recycled material, dimensions and weight may present tolerances. Dimensional tolerances according to DIN ISO 2768-V. Weight tolerances: +/- 4%. Naeco reserves the right to modify any information herein without prior notice.

Specifications / technical characteristics

• Reference: MASTER 1208-O3
• Commercial name: MASTER 1208-O3
• Category: Medium plastic pallet
• Dimensions: 1.200 × 800 × 150 mm
• Stacked height: 150 mm
• Weight: 12.40 kg
• Rims (standard): 7 mm (options: no rims or 22 mm)
• Static load: 5,000 kg
• Dynamic load: 1,500 kg
• Rack load: 600 kg
• Temperature range: 0º/40ºC [32º/104ºF]
• Handling: 4-ways
• Color: Black (standard)
• Options: engraved logo, EAN/QR/RFID/number marking, metal reinforcement (3 tubes), anti-slip stripes, anti-slip pins under board
• Sustainability: manufactured using recycled packaging (equivalent to preventing 310 plastic packages from landfill for MASTER 1208-O3)
