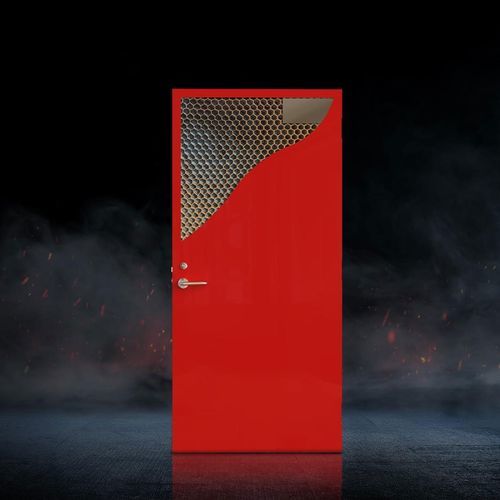

Swing door Eagle

steelfire-resistantindoor

NAFFCO “Eagle” Honeycomb Doors are highly economical doors which blend rigidity, durability, impact resistance and aesthetics in-addition to meeting exceptional level of flatness. These environmental friendly Doors have excellent rigidity which is achieved by the numerous I-beam like structures formed by the Honeycomb Core. Being light-weighted, these Doors take very less toll on the Ironmongery used thereby ensuring the longevity of the Doors and the ironmongery. • Fabricated and assembled in UAE. • Highly Economical and Environmentally Friendly. • Cold Rolled Steel, Metallic Coated as per ASTM A 792 Standard offering Superior corrosion resistance. • Kraft Honeycomb Core with smaller cells offering phenomenal flatness and structural rigidity / strength. • Up to 180* Minutes Fire Integrity. • Tested to UBC 7-2, ANSI/UL 10B, 10C (Positive Pressure Test Standard) or BS 476 Part 22 Standard. • Sound Transmission Classification rating up to 34 dB. • Thermal Characteristics: U Factor – 0.41, R Factor – 2.44. • Mechanically interlocked vertical edge seam construction for added structural strength. • 1-3/4” thick Door Leaf suited for wider selection of builder’s hardware. • Suited for light, medium, heavy duty and extra-heavy-duty Usage. • Bonding to both steel face sheets with full coat of polyurethane adhesive ensures corrosion resistance and structural rigidity. • 16GA Inverted Top and Bottom end channels welded to both face sheets. • Electrostatically Factory Powder Coated. • 8GA Galvanized Steel Hinge Reinforcement and 13GA Galvanized Steel Closer Reinforcement.
