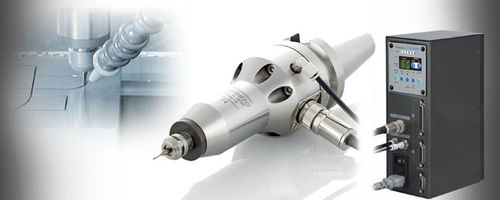

Milling motor spindle HES

machiningdrillingEC motor

HES510】 ･5,000-50,000 min-1 Max. output 340W ･Less than　Φ2mm drilling and milling with extremely good surface finishes ･BT,NT,CAT, IT, HSK A and ST taper are available.Straight shank is newly line-up. 【HES810】 ･80,000 min-1 maximum speed without rotating the machining center's main spindle, virtually no vibration, Ultra High-Precision. ･BT, NT, HSK A63 and ST tapers are available. ･High-Speed Brushless motor and Ultra-Precision spindle enables very high speed machining with extremely good surface finished using less than 2mm diameter drills and end mills.
