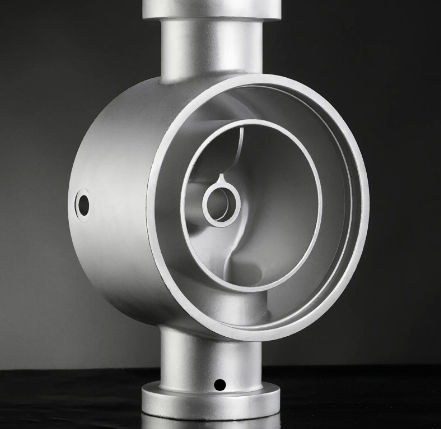

Stainless steel casting

individualfor industrial applications

TECHNICAL DATA Process: Full-silicon sol wax casting Weight: 20 g -150 kg Diameter: 10 mm-800 mm Mini. wall thickness: 2 mm Mini.aperture: 3 mm APPLICATIONS Pump valve, engineering machinery, automobile truck, ship, petroleum machinery, nuclear power, desalination, aerospace and other fields MATERIAL Various grades of stainless steel, alloy steel, cast steel PRODUCT DESCRIPTION Wide process adaptability: not limited by product material, product structure, production batch and part weight. The process has good extensibility: it can replace all kinds of forming processes horizontally, and the cost is more than 15% lower than that of other manufacturing processes. High cost performance: high dimensional precision CT7~CT4, low surface roughness Ra12.5~Ra1.6;, maximum weight 120kg, thinnest wall thickness < 1mm; The environmental protection of the process is excellent: the utilization rate of resources is high, and the discharge of "three wastes" is less. Features and advantages High surface quality of castings. High precision castings. Suitable for structural complex parts
