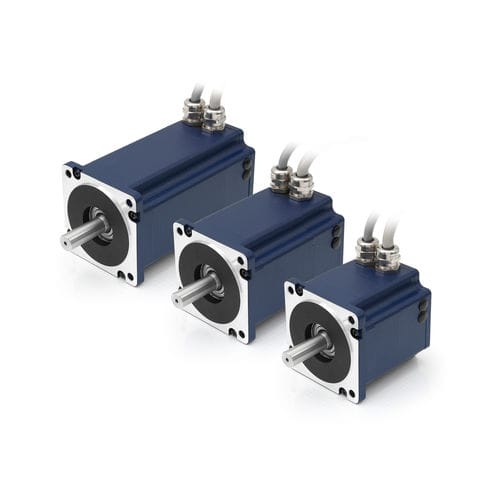

Brushless servomotor PD6-N89DC24 V48 V
Add to favorites
Compare this product
Characteristics
- Type
- brushless, DC
- Voltage
- 24 V, 48 V, 12 V
- Configuration
- NEMA 34
- Protection class
- IP65
- Other characteristics
- CANopen, with integrated controller
- Torque
3.2 Nm, 5.9 Nm, 9.33 Nm
(2.360199 ft.lb, 4.351617 ft.lb, 6.881455 ft.lb)- Diameter
89 mm
(3.5 in)
Description
High-pole servo motor (stepper motor) with integrated controller in size NEMA 34 (86 mm) and protection class IP65 (except shaft outlet). Available either with a signal cable (1 x line/1 x signal) or M16 Twintus connector. The PD6-N motors are supplied with firmware that has been optimized for RS485. If you wish to use CANopen, please download the NanoPro software, connect the motor to the PC via the serial interface and perform a firmware update with NanoPro. You can download the free NanoPro software here.
Please note:
When connecting a plugged-in laptop with this motor via USB, a USB isolator must be used to prevent damage to the integrated controller. The USB isolator is not required when using battery power.
