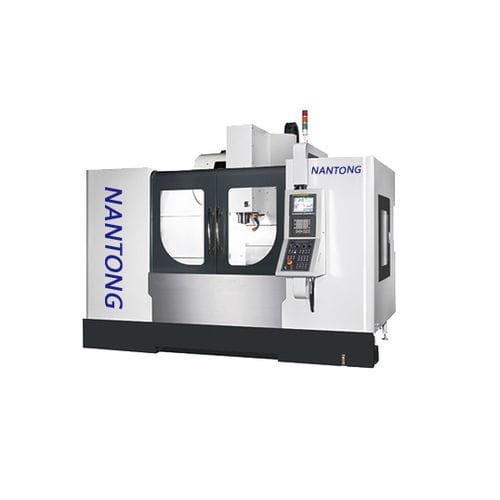

3-axis CNC machining center YJ-VMC1300verticalBT 40BT 50
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Spindle mount
- BT 40, BT 50
- Number of tool stations
- 24 tools
- X travel
1,300 mm
(51 in)- Y travel
700 mm
(28 in)- Z travel
700 mm
(28 in)- Rotational speed
8,000 rpm
(50,265 rad.min-1)- Power
7.5 kW, 11 kW
(10.2 hp, 14.96 hp)- Work feed X-axis
30,000 mm/min
(20 in/s)- Work feed Y-axis
30,000 mm/min
(20 in/s)- Work feed Z-axis
24,000 mm/min
(16 in/s)- Table load capacity
1,000 kg
(2,205 lb)- Tool weight (max)
7 kg, 15 kg
(15.4 lb, 33.1 lb)- Weight
7,000 kg
(15,432.36 lb)- Overall length
3,650 mm
(143.7 in)- Overall width
2,915 mm
(114.8 in)- Overall height
3,027 mm
(119.2 in)
Description
travel
Spindle nose to desktop BT40: 130~830 (5.1~32.6 inches) mm
BT50: 100 ~ 800 (3.9 ~ 31.4 inches) mm
Spindle center to cylinder 770 (30.3 in.) Mm
table
Table size 1,450x700 (57x27.5 inches) mm
T slot (size / number / min) 18x5x125 mm
spindle
conveyor belt
Feed rate
Cutting feed speed 1 ~ 12M / min
CNC controller and motor
CNC Controller Mitsubishi (* FANUC / SIEMENS / HEIDENHAIN)
Coolant
Coolant pump 1 HP
Coolant tank capacity 400 liters
Air and power
Air source 6 kg / square meter
Power 12 KVA
Manufacturers reserve the right to make changes to their designs, specifications, institutions, etc., to improve machine performance. Specifications are subject to change without notice.
