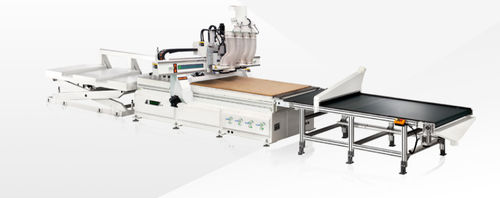

Wire cutting machine NCG2513LECNCboringhigh-speed
Add to favorites
Compare this product
Characteristics
- Technology
- wire
- Control type
- CNC
- Associated function
- boring
- Other characteristics
- high-speed, electric
- Cutting speed
20,000 mm/min, 50,000 mm/min
(13.123 in/s, 32.808 in/s)- Overall length
4,000 mm
(157 in)- Overall width
2,500 mm
(98 in)- Height
2,300 mm
(91 in)- Weight
2,100 kg
(4,629.71 lb)
Description
NCG2513LE with 4 high-speed main spindles is able to meet various processing requirements like nesting, shaping, grooving, top side boring. Max. speed along X & Y direction up to 50m/min, auto feed-in and out table improve the efficiency, save labor. IPC control with window 7 operation system of high stability and ease of operation.
• 3 pcs 3.5kw main spindles plus 1 pc 6kw main spindle make it possible to meet complicated processing requirement including top boring, grooving, nesting and routing some shapes.Collet type: ER32;
• Movement of Z axis by ball screw rod. The accurate movement of each axis is ensured by high quality servo motors;
• Daily grease work of transmission parts is so easy to do by using lubrication pump.
• Independent control cabinet with organized wire and high-quality electric components. IPC with Windows operation system.
Table size 2500×1250mm
Main spindle power
6kw×1
3.5kw×3
Max rotating speed 18000rpm
Vacuum pump 7.5kw
Suction flow rate 250m3/h
Dust extraction φ200mm
Total power 29.5kw
