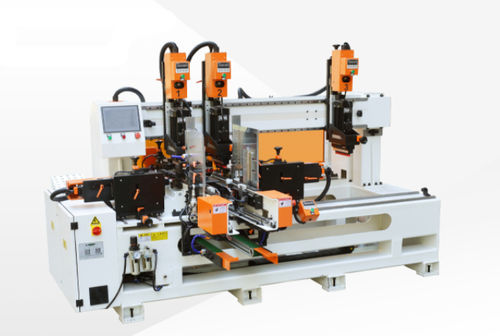

CNC drilling machine NDA232
multi-axishorizontal

CNC drilling machine
CNC drilling machine
Add to favorites
Compare this product


Characteristics

Type
CNC
Other characteristics
horizontal, multi-axis

Description

Drilling Machine for Narrow Parts NDA232-Small Narrow Boards NDA232, multi rows boring machine is special designed for boring work of small narrow board like drawer small furniture parts, feed in& out from front, this kind of return feed system plus simplified boring process make it possible to finish 4 sides boring including top, two side sides, and back side in one process. Boring block could be customized as per your boring requirement. Highlights Return feed system, feed in& out from front, boards are able to return automatically after boring, one operator is enough for putting and discharge boards, fast and efficient; Independent boards feeding storage protects boards surface effectively; Three vertical rows on top and two horizontal drills on side sides and another two on back side. The design 7 drills on each row can meet various boring requirements of small boards. Horizontal and vertical rows are able to work alternately or synchronously. Boring rows position is easy to adjust by using a digital display sensor, easy operation and training; Touch screen, boards counting, positioning, storage, boring are available at a glance thanks to inventive system, simplifies the operation. Technician Data Model NDA232 Max panel width 5-210mm Min panel length 200mm(气动送料) Max panel length 1500mm Space of drills 32mm(标配)可定制钻包 Panel thickness 10-25mm Performance ---- Motor power 1.5kw×7 Total power 11.5kw
