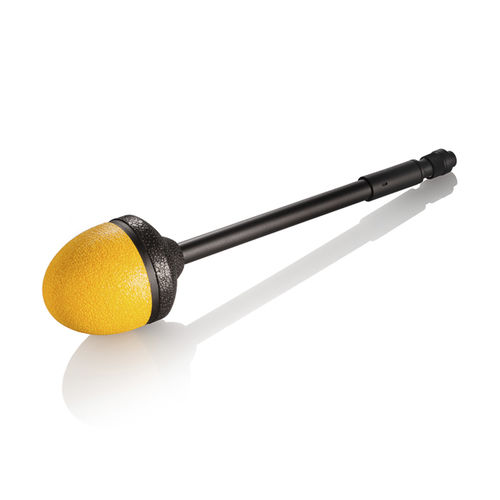

Electrical field probe EF6092

isotropicfor telecom applicationsmodular

NEW! Sensitive field probe for all types of high frequency application. 100 MHz - 60 GHz > Flat frequency response > Diode sensors > Isotropic characteristic > Multi-point calibration > Modular, can be used with any NBM basic unit Specifications Frequency range100 MHz to 60 GHz Measurement range0.7 to 400 V/m Dynamic range55 dB Dimensions318 mm x 66 mm Ø Weight90 g Measuring electric fields from 100 MHz to 60 GHz using instruments in the NBM-500 family • General public and occupational field exposure • Broad frequency range with high dynamic range • Isotropic (non-directional) measurement The probe contains three orthogonally arranged dipoles with detector diodes. The diode voltages each correspond to the RMS value of the spatial components. The isotropic measurement result is obtained by addition within the probe. APPLICATIONS The probe detects electric fields from 100 MHz up to 60 GHz. This frequency range covers almost the entire range of high frequency communications, right up to mobile radio and satellite links. The linearity and sensitivity of the probe ensure its suitability for checking human safety limit values in the occupational and general public environments. PROPERTIES The probe is designed with mechanical and electrical properties ideal for field use. The probe head is made of foam material to provide effective protection for the sensors, while having excellent RF characteristics. The detector elements are also largely protected against overload, since their destruction limit is well above all the human safety limit values.
