Piston compressor Extreme SD
airelectrically-poweredstationary

piston compressor
piston compressor
piston compressor
piston compressor
piston compressor
Add to favorites
Compare this product


Characteristics

Technology
piston
Type
air
Power source
electrically-powered
Portability
stationary
Lubrication
oil-free
Application domain
for dental applications, for chemical applications, for heavy-duty applications
Applications
cabinet
Other characteristics
compact, low-noise
Tank volume

30 l
(7.9 gal)

Pressure

8 bar
(116.03 psi)

Flow

200 l/min, 240 l/min, 350 l/min
(52.83 us gal/min, 63.4 us gal/min, 92.46 us gal/min)

Power

0.5 kW, 1.1 kW, 1.5 kW
(0.68 hp, 1.5 hp, 2.04 hp)

Length

65 cm, 71 cm
(26 in, 28 in)

Width

44 cm
(17 in)

Height

76 cm
(30 in)

Weight

Max.: 78.5 kg
(173.1 lb)

Min.: 65.5 kg
(144.4 lb)

Noise level

63 dB, 64 dB

Description

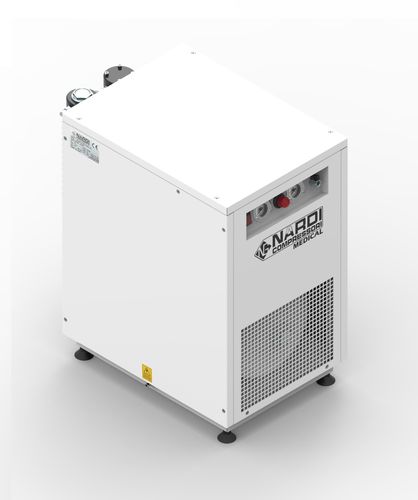

The NARDI COMPRESSORI MEDICAL full range is designed and developed by expert technicians specifically for the dental and medical industry. The air tanks of this whole compressor line are painted internally with corrosion inhibiting epoxy electrostatic powder and the compressors are equipped with dryers that absorb humidity and produce a moisture-free and clean air quality. NARDI also avails of antibacterial filters to meet international standards required by the niche markets we cater for. The materials and components used to manifacture these modern, strong and silent compressors guarantee great performance and reliability and they are all certified as CLASS IIA MEDICAL devices and recognised by the Italian Ministry of Health. This EXTREME SD 30L in the MEDICAL range is a super silenced oil-free compressor suitable for noise-critical conditions in dental and medical clinics, chemical labs and other medical applications needing clean and dry air. The 30L air receiver with special internal coating and its pump unit are fitted in a compact cabinet designed by NARDI with an efficient forced air cooling system. The EXTREME SD compressors are equipped with heavy duty long life pumps and integrated adjustable air presssure regulators and these versions can also be supplied with one of the esiccant dryers manufactured in-house by NARDI COMPRESSORI. Oil free to avoid residues to be removed and air contamination, for greater patient safety, reduced maintenance requirements and longer device life Special internal painting to preserve the air quality and the life of the tank Noise and vibration reduction for greater operator and patient comfort
