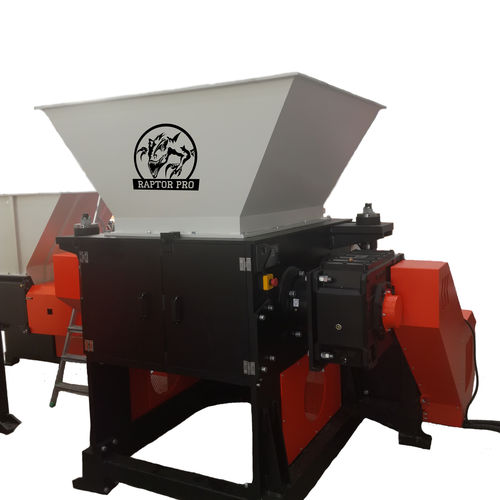

Primary shredder RAPTOR DR800
double shaftfor cardboardchip

Primary shredder - RAPTOR DR800 - Nardid Machines - double shaft / for cardboard / chip
Primary shredder - RAPTOR DR800 - Nardid Machines - double shaft / for cardboard / chip
Primary shredder - RAPTOR DR800 - Nardid Machines - double shaft / for cardboard / chip - image - 2
Primary shredder - RAPTOR DR800 - Nardid Machines - double shaft / for cardboard / chip - image - 3
Primary shredder - RAPTOR DR800 - Nardid Machines - double shaft / for cardboard / chip - image - 4
Primary shredder - RAPTOR DR800 - Nardid Machines - double shaft / for cardboard / chip - image - 5
Primary shredder - RAPTOR DR800 - Nardid Machines - double shaft / for cardboard / chip - image - 6
Add to favorites
Compare this product

Characteristics

Type
primary
Number of shafts
double shaft
Application
for cardboard, chip, pallet, metal, tire, paper, for waste, glass, for wastewater, for straw, for hay, for food waste
Other characteristics
rugged, high-torque, for high torque, reinforced, heavy-duty
Power

Min.: 37,000 W

Max.: 180,000 W

Output

Min.: 200 kg/h
(440.92 lb/h)

Max.: 1,000 kg/h
(2,204.62 lb/h)

Rotor diameter

Min.: 220 mm
(9 in)

Max.: 400 mm
(16 in)

Rotational speed

Min.: 73 rpm
(459 rad.min-1)

Max.: 73 rpm
(459 rad.min-1)

Operating weight

Min.: 2,000 kg
(4,409.2 lb)

Max.: 7,000 kg
(15,432.4 lb)

Machine length

Min.: 2,000 mm
(79 in)

Max.: 2,900 mm
(114 in)

Machine width

Min.: 1,500 mm
(59 in)

Max.: 2,800 mm
(110 in)

Machine height

Min.: 1,700 mm
(67 in)

Max.: 2,150 mm
(85 in)

Description

Double shaft shredder series "DR" has been successfully used for processing or crushing of various wastes such as plastic waste, bags, film, big-bags, cables , wood , paper, household waste. Especially effective for crushing film and woven materials, through special processing of the rotor. A suitable mesh can be selected according to raw material and customer requirements. Processed in the shredder waste can be directly used in the production of, or be subjected to additional crushing for smaller fraction.
