Primary shredder RAPTOR-D800
single shaftmetalchip

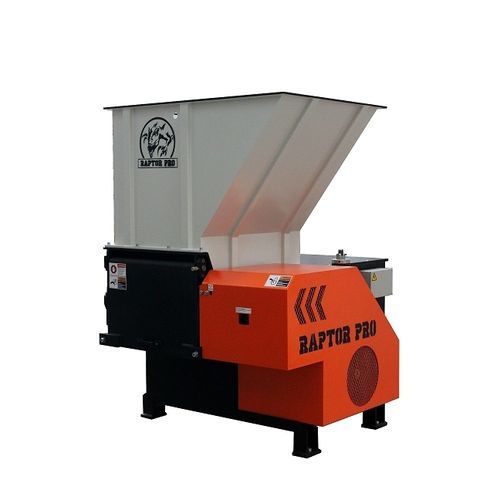

Primary shredder - RAPTOR-D800 - Nardid Machines - single shaft / metal / chip
Primary shredder - RAPTOR-D800 - Nardid Machines - single shaft / metal / chip
Primary shredder - RAPTOR-D800 - Nardid Machines - single shaft / metal / chip - image - 2
Primary shredder - RAPTOR-D800 - Nardid Machines - single shaft / metal / chip - image - 3
Primary shredder - RAPTOR-D800 - Nardid Machines - single shaft / metal / chip - image - 4
Primary shredder - RAPTOR-D800 - Nardid Machines - single shaft / metal / chip - image - 5
Primary shredder - RAPTOR-D800 - Nardid Machines - single shaft / metal / chip - image - 6
Primary shredder - RAPTOR-D800 - Nardid Machines - single shaft / metal / chip - image - 7
Primary shredder - RAPTOR-D800 - Nardid Machines - single shaft / metal / chip - image - 8
Add to favorites
Compare this product

Characteristics

Type
primary
Number of shafts
single shaft
Application
metal, chip, pallet, for wastewater, for cardboard, tire, paper, for waste, glass, for hay, for straw, for food waste, for vegetal cover destruction
Other characteristics
rugged, high-torque, for high torque, reinforced, heavy-duty
Power

Max.: 90,000 W

Min.: 18,500 W

Output

Max.: 1,300 kg/h
(2,866.01 lb/h)

Min.: 200 kg/h
(440.92 lb/h)

Rotor diameter

Max.: 400 mm
(16 in)

Min.: 220 mm
(9 in)

Rotational speed

Max.: 73 rpm
(459 rad.min-1)

Min.: 73 rpm
(459 rad.min-1)

Operating weight

Max.: 5,900 kg
(13,007.3 lb)

Min.: 1,700 kg
(3,747.9 lb)

Machine length

Max.: 2,700 mm
(106 in)

Min.: 1,850 mm
(73 in)

Machine width

Max.: 2,600 mm
(102 in)

Min.: 1,300 mm
(51 in)

Machine height

Max.: 2,150 mm
(85 in)

Min.: 1,700 mm
(67 in)

Description

They allow the processing of large-scale waste of plastics and polymers, such as LDPE, HDPE, PP, PET, ABS, PS, PC, etc. NARDID-MACHINES offers, double shaft and four-shaft Raptor Pro shredders. Single shaft shredders are successfully used for processing and grinding of various wastes, such as plastic wastes, gates, pipes, woven bags, cables, wood, paper, household waste, electronic waste, etc. The diameter of the holes in the grid can be changed in accordance with the characteristics of the material and the wishes of the customer. The "D" series shredders can be equipped with different types of shafts rotors. The cooling system can be installed upon request.
