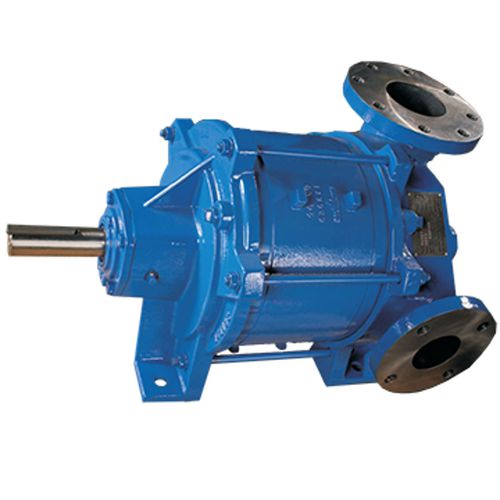

Liquid ring vacuum pump Vectra GL

lubricatedsingle-stagecompressor

The NASH Vectra liquid ring vacuum pump and compressor series deliver optimum performance with unprecedented production efficiencies. The Vectra GL models, with capacity ranging from 30 to 830 ACFM (50 to 1,400 m3/h), are engineered to deliver outstanding reliability and performance for general industrial applications. Reliable & Efficient With Proven Performance Based on proven reliable NASH conical liquid ring pump designs, the Vectra series delivers superior performance and reliability through several engineering upgrades. Built-in mechanical seals eliminate shaft leakage Improved cone angles, which decrease the size of the pump, Patented Gas Scavenging Technology dramatically improves pump performance at high vacuum levels Easy To Maintain - Low Total Cost of Ownership The Vectra GL pump was engineered to be easy to maintain, with improvements that optimize performance and reliability. Bearings placed outboard where they can be accessed without disassembly of the pump. The pump body is engineered to reduce forces on the pump shaft Lobe purges reduce erosion wear Operates As A Vacuum Pump & Compressor With A Discharge Pressure Range Of 15 psig (2 bar abs.) Some applications require vacuum and compression in one process. Instead of handling the gas with two separate machines, our liquid ring vacuum pump and compressor models can do the job with only one pump - reducing cost and simplifying installation.
