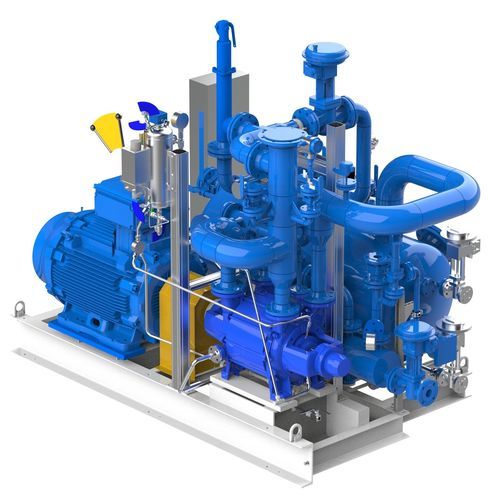

Liquid ring pump vacuum system

for the chemical industryindustrialmulti-stage

Operational Efficiency & Cost Savings Smart Power Management: The 45 kW motor optimizes energy consumption, reducing operational costs. Minimal Maintenance: The design ensures extended service life and lower maintenance requirements. Durability & Reliability: Built to withstand demanding industrial environments, ensuring long-term performance. Performance & Efficiency Designed for VCM and VC gas processes with a capacity range of 600-1000 m³/hr. Operates efficiently with an inlet pressure of 80 - 1000 mbara and a discharge pressure of 1000 - 1350 mbara. Powered by a 45 kW motor, ensuring optimal energy efficiency. Advanced Engineering Features a simplified design with only one moving part—the rotor and shaft assembly—for minimal maintenance and maximum reliability. Engineered to accommodate customer-specific requests for tailored system solutions. Safety & Compliance Double-acting mechanical shaft sealing for leak-free operation. ATEX-certified (Cat. 2), with options for Cat. 1 certification. Supplied with CE-Marking, General Arrangement drawings, manuals, test certificates, and start-up procedures to ensure industry compliance.
