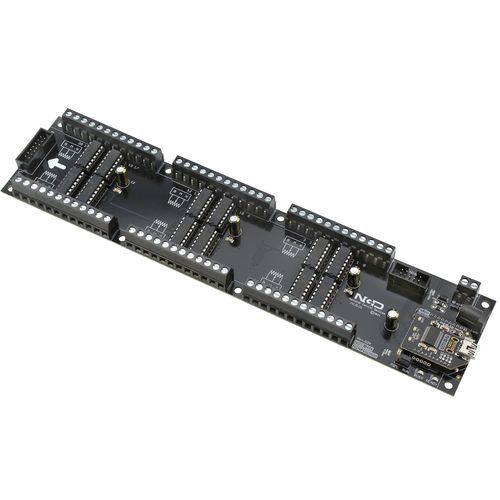

Potentiometer controller card for potentiometer

EthernetRS-232USB

Highlights • - 24-Channel Digital Potentiometer Controller 256 Taps per Potentiometer • - 10K, 50K, and 100K Variants Available up to 1mA per Channel • - Modular Communications Interface Supports Many Popular Communication Modules: o - WiFi, Bluetooth, Ethernet, WebPage, Industrial Wireless, USB, RS-232 and More • - Expandable to Control up to 256 Digital Potentiometers using UXP Expansion Port • - Expandable to Control Relays using the XR Expansion Port o - Supports SPDT, DPDT, High-Power Relays and Solid State Relays • - Supports Relay On, Off, and Toggle Functions • - 16 Background Timers Can be Assigned to Any of the On-Board Relays • - Server Reboot, Watchdog, & Keep Alive Duration/Pulse Timing Command Set • - Control One Relay at a Time or All Relays Simultaneously Digital Potentiometer Controller 24-Channel You’ve been asking for us to bring back our Digital Potentiometer Controller and we’ve heard you! Back in production as a Legacy controller, this device will not become obsolete as long as Parts Remain Available! Based on the MCP42xx0 Series Digital Potentiometers, use a computer to change the resistor values on 24 different programmable resistors with up to 256 taps per potentiometer. Available in Potentiometer values of 10 kΩ, 50 kΩ and 100 kΩ with a wiper current of up to 1mA per channel. Set the Power-Up Default State of the first 32 Potentiometers or read the Power-Up Default State of Each Potentiometer. All other Potentiometers default to a center position for all wipers.
