Medical camera PL-D75 series

for metrologyHDRinspection

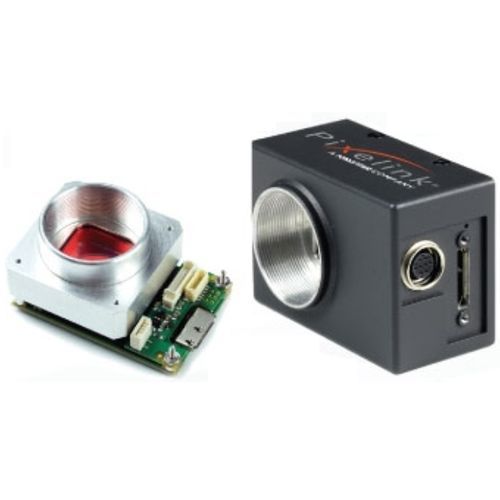

The Pixelink HDR camera models are based on Sony’s 3rd generation IMX420 and IMX421 Pregius CMOS global shutter sensors and offer on camera HDR features ideal for high dynamic range (HDR) imaging applications requiring both high resolution images and high frame rates. A key feature of the 3rd generation Sony Pregius CMOS sensors is a Dual ADC mode where each pixel can be read out with two different gains. The PL-D757 and PL-D753 take advantage of this new feature to combine the dual ADC images into a single hybrid HDR image directly on camera, thus removing the need for any host processing. Real time on camera HDR is an easy way for the user to gain 6dB-10dB of additional dynamic range on their image without loading down the CPU or requiring additional complex software algorithms. Everything is done on the camera which outputs the HDR image directly. Looking for a complete HDR imaging system? Navitar's Resolv4K wide FOV HDR camera and lens system lets you inspect at 400-600% larger area than competitors, with higher image contract and speed.
