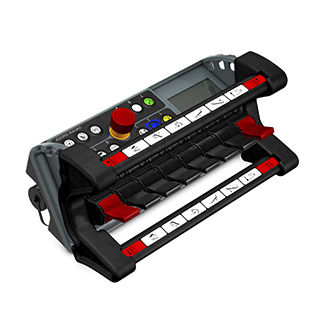

Radio control HyPro+

joystickwith emergency stopIP65

The HyPro+ is the newest advancement of the HyPro series. It has a 3,2" LCD colour display, which makes it possible to get datafeedback in a high resolution. • Exceptional, compact and ergonomic design • integrated LCD colour display • Optional: additional dust and shock protection through protectors and bellows joysticks • SMJ technology • IP 67 Technical information: • Frequency band (F2-Band): 434,050 – 434,750 Mhz • Frequency band EU (G-Band): 866 – 870 MHz • Frequency band USA: 915 MHz • RF output: < or = 10 mW • Operating range: ≤ 300 m • Antenna: integrated • Response time of control command: 15 ms • SMJ-Technology: easy change of the joystick • Advance alert “battery empty”: 15 minutes • Datafeedback: optional Machine data: • Operating temperature range: -20 °C to +65 °C • Weight: 815 g • Status indication: 3,2" LCD- colour display Equipment safety: • CE label: yes • IP-Protection Class: IP67 Power supply: • Quick-change battery system: Ni-MH / 1 500 mAh • Voltage: 7,2 V • Operating time: 35 hours/battery charge • Charging time approx.: 1 hour • Charging technology: external via charger • Measurements: 126 x 47 x 18 mm • Weight: 195 g BATTERY CHARGER • Suitable for 230 V/AC, 110 V/AC, 12/24 V/DC • Optional plug form EU, USA, JP, GB, AU • Temperature measurement for an improved recharging
