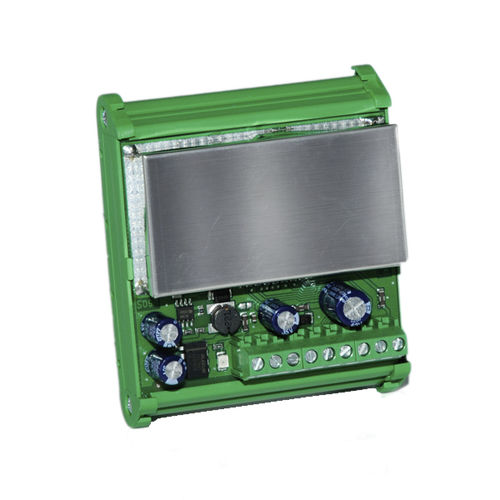

Analog weight transmitter AMAV 02DIN rail mount
Add to favorites
Compare this product
Characteristics
- Output signal
- analog
- Mounting
- DIN rail mount
Description
AMAV 02 is an analog signal transmitter: 0÷10 V / 4 ÷20 mA, provided of a standard container for mounting on DIN rail which permit the weight calibration via trimmer and dip switches.
EXCITATION
24 Vcc ± 15 %
MEASUREMENT RANGE
±1mV/V, ±2mV/V, ±3mV/V selectable with micro switches
CONNECTIONS
Terminal blocks, pitch 5.08 mm
OVERALL DIMENSIONS
76 mm x 90 mm x 65 mm (l x h x p)
PROTECTION DEGREE
IP00
MOUNTING
Support for DIN rail or OMEGA bar
