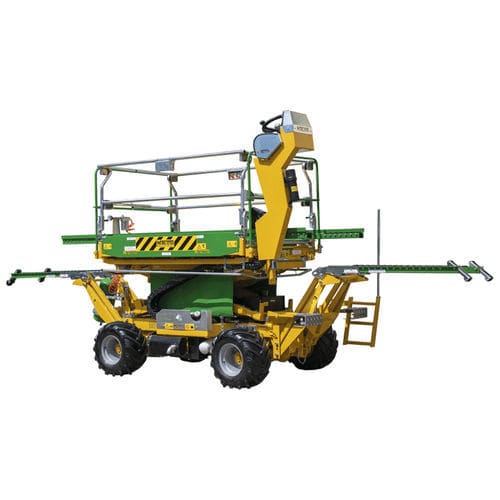

Diesel engine self-propelled trailer ZIP 20

2-axlelifting

Diesel Motor Kohler LDW 1003 3cyl. Kubota D1105 3cyl. Traction Hydrostatic on 2 or 4 wheels. On request: hydraulic motor with variable cylinder capacity electrically controlled. Electric Traction AC 48V power system complete with hours meter, battery charger, load indicator, traction control for up and down hill, automatic back up braking system. Electronic rectifier 220V. Gears 2 gears + neutral in central position - electrical control from control panel. Steering Whit hydraulic power steering on the front wheels. Indipendent steering on the rear wheels (only 4 wd). With 3 positions selector indipendent and/or combined on request. Speed min 0 km/h max 8 km/h Brakes Hydraulic on the rear wheels. Parking/negative brake on 4 wheels. On request hydraulic brakes on 4 wheels. Fruit collector One central collector with idraulic lift (available size and vertical lift rails can be seen in the diagrams shown below). Detachable footguard. Front lift Hydraulic lift for loading crates up to 500 kg capacity. Rear lift Hydraulic lift for unloading crates up to 500 kg capacity. Rolling for pallet boxes Along the intire lenght of the machine. Pruning system C.500/C.600 lt compressor - electromagnetic coupling, control on panel.
