Rigid videoscope G

flexiblefor pipe inspectionfor remote visual inspection

Overview

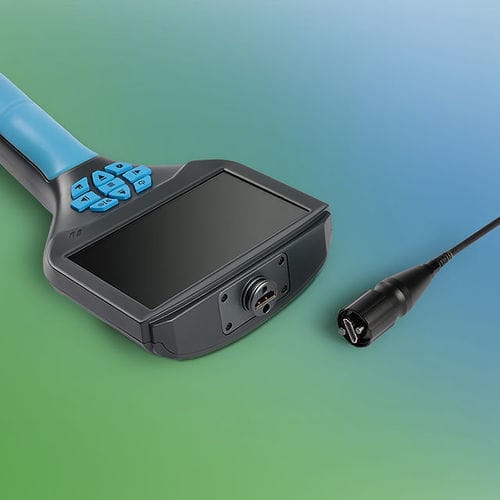

The Videoendoscope G from NDTec is a lightweight industrial video endoscope for visual inspections in confined spaces and general industrial inspection tasks. It is intended for applications where probe bending is not required and emphasizes fast probe interchangeability through an HDMI-compatible plug-in system.

Key features

• Ergonomic, lightweight handheld unit designed for prolonged inspections in industrial environments
• 5-inch touchscreen with HD image processing; resolution up to 1280×720 px depending on probe
• CMOS camera with glare suppression and low-light compensation for reflective materials and dark details
• Image functions: rotate, freeze, digital zoom up to 4×
• Quick, tool-free probe exchange using an HDMI-compatible plug-in connection
• Wide range of interchangeable probes for different diameters, lengths and optical configurations
• Probes protected by abrasion-resistant tungsten braid for corrosion and mechanical wear resistance

Probes & optics

• Probe diameters: 1.2 mm to 6 mm
• Probe lengths: 1 m to 15 m
• Multiple optical configurations available depending on application
• Slip-ring side-view probes (3 mm and 4.5 mm) enabling unrestricted 360° rotation — suitable for orbital weld inspections inside tubes and pipes

Display & imaging

• 5-inch capacitive touchscreen with modern HD image processing
• Resolution up to 1280×720 px depending on probe selection
• Automatic brightness enhancement and low-light compensation
• Glare suppression for highly reflective surfaces (e.g., metals)
• Image manipulation: rotation, freeze-frame, digital zoom up to 4×

Connectivity & accessories

• HDMI-compatible plug-in system for reliable, high-quality video signal and durable mechanical connection
• Probes designed for rapid replacement and industrial durability
• Optional accessories and sensors available, including temperature sensors and configurable probe options

Additional information
A detailed product brochure and online configurator are available to select probe lengths, diameters, optics, sensors and accessories to match specific inspection needs.

Technical specifications

• Model name: G
• Manufacturer: NDTec
• Display: 5-inch touchscreen (HD image processing; up to 1280×720 px depending on probe)
• Probe diameters: 1.2 mm – 6 mm
• Probe lengths: 1 m – 15 m
• Optical options: multiple configurations depending on probe
• Digital zoom: up to 4×
• Glare suppression and low-light compensation: integrated
• Probe protection: tungsten braid (abrasion-resistant, corrosion protection)
• Side-view slip-ring probes: 3 mm and 4.5 mm diameters with 360° rotation
• Connection: HDMI-compatible plug-in system
• Intended use: industrial visual inspections (rigid/flexible probe options)
