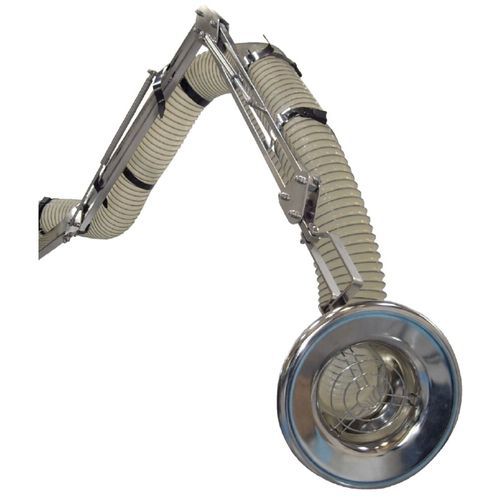

Wall-mounted extraction arm NEX S

flexiblewelding fumestainless steel

The NEX S arm fulfils all requirements for use in environments containing explosive dust and gas, and with extremely high hygienic demands. It has a double-earthed system and antistatic earthed ventilation hose that prevents static electricity and sparks. Open support arm system and hood of acid proofed polished stainless steel requires a minimum of maintenance and makes it easy to clean. The NEX S is not marked with the EX symbol since it does not fall under the scope of the directive 2014/34/EU. Even if it does not have the EX marking, it is highly suitable for use in zones 1/21, 2/22 according to ATEX-work directive 1999/92/EC. The arm is double-earthed, by the helix in the hose and through the arm system. The hose is made of antistatic Polyurethane. Extraction arm that fulfills all requirements for use in environments containing explosive dust and gas, and with extremely high hygienic demands. Little maintenance Easy to clean Double earthed Flexible arm, easy to position Recommended for use in explosive environments, zone 1/21, 2/22
