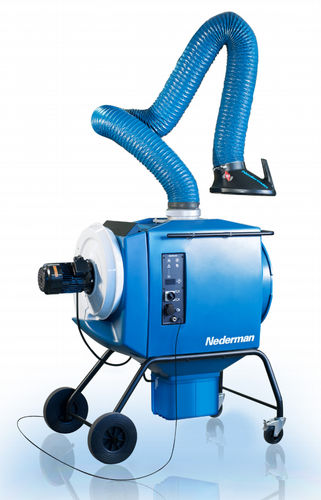

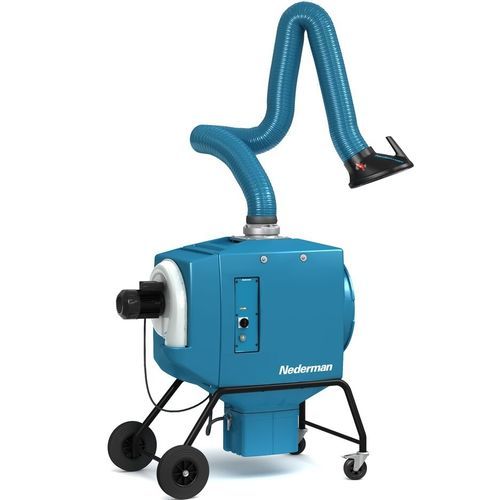

Mobile fume extractor FilterBox 10M

weldingcartridgewith extraction arm

The FilterBox 10M is equipped with a N24 fan for a maximum air flow capacity of 1 000 m³/h (600 CFM) and is ideal for light to medium frequency dust or fume applications. The unit has a filter supervision system which indicates with an audial alarm when the air flow is too low. The cleaning method is mechanical and pneumatic, operated manually. Depending on the model, it is equipped with mechanical cleaning for dust applications or a combination of mechanical and compressed air cleaning for fumes and dust. For welding applications, compressed air cleaning is required. An integrated silencer reduces noise from the fan and outlet air. Additional protection from harmful particles is provided if a HEPA filter is installed (optional). FilterBox 10M is available as a mobile unit on wheels or a fixed mount unit. Filterbox 10M is suitable for welding applications such as TIG, MIG, MAG (excluding high alloy), as well as for grinding. Note! FilterBox is not for use in environments where combustible dust or gases are present, and it is not for use in filtering combustible dust or gases. Manually cleaned for light to medium welding fumes and dust applications. Filter efficiency M6 (EN779), MERV 11 (ASHRAE 52.2, 2017). Manually operated, mechanical and pneumatic filter cleaning for long filter life. Automatic damper preventing dust from leaking out while cleaning. Approved for welding fumes category W3 according to EN 15012-1, third party tested. Dust free filter replacement and emptying of dust bin.
