LCD monitor / TFT / 15" / 1280 x 1024
M1200 series

Add to MyDirectIndustry favorites
Compare this product
LCD monitor / TFT / 15 LCD monitor / TFT / 15" / 1280 x 1024 - M1200 series
{{requestButtons}}

Characteristics

  • Technology:

    LCD, TFT

  • Display size:

    15"

  • Resolution:

    1280 x 1024

  • Mounting:

    panel-mount

  • Other characteristics:

    NEMA 4, IP66, explosion-proof

  • Applications:

    industrial

Description

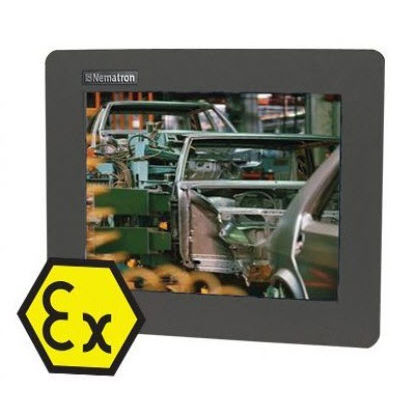

M1200 Series IECEx and ATEX 2/22 Approved 12.1" Industrial Monitor. Also available in the screensizes 15.0", 17.0", 19.0" and in the widescreen sizes 21.5" and 22.0".

Offering unparalleled value and superb quality, the Nematron M-Series by Comark are high performance color TFT flat panel monitors specifically designed for harsh industrial environments including Class I & II, Division 2 Hazardous Locations when mounted in a NEMA enclosure. M-Series Displays now carry IECEx and ATEX Zone 2/22 certificates of approval.
12.1" SVGA Color TFT LED-backlit LCD Display
5-wire Analog Resistive Touchscreen with RS-232 or USB interface
Ultra-Thin panel mounting depth, less than 2.9" behind bezel
NEMA 4/4X/12, IP66 powder coated aluminium front bezel
Integrated isolated 24 VDC power supply
Simplified mounting clip installation with no studs
Accepts analog 15-pin video input or DVI input
IECEx and ATEX Zone 2/22 approved when installed in an ATEX approved enclosure as described in DEMKO 14 ATEX 1374X and UL 16.0058X
