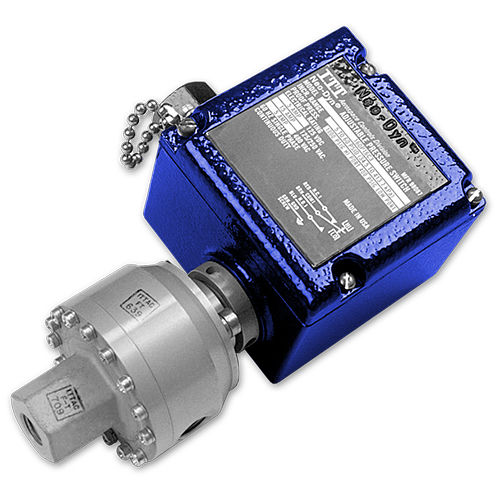

Diaphragm pressure switch 160P differentialO-ringthreaded
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Pressure type
- differential
- Mounting
- threaded, O-ring
- Process connection
- NPT 1/4, NPT 1/2
- Material
- stainless steel, aluminum
- Protection level
- SIL, NEMA 4X, NEMA 13, NEMA 7, NEMA 9
- Other characteristics
- adjustable, explosion-proof
- Pressure range
Min.: 0.75 psi
Max.: 500 psi
- Burst pressure
Min.: 200 psi
Max.: 1,000 psi
- Process temperature
Min.: -40 °C
(-40 °F)Max.: 121 °C
(249.8 °F)
Description
Mid-range, adjustable differential pressure switch. Efficient Nega-Rate® Belleville disc spring sensing mechanism for stable set points during system pressure changes. Hermetically sealed, explosion-proof electrical assembly well suited for hazardous or explosive environments.
Specifications
Electrical: Snap action electrical switch assembly listed by Underwriters’ Laboratories, Inc., FM Approval and CSA International
Adjustment: Concealed wrench flat adjustment with range scale
Shipping Weight: Approximately 3.5 pounds
*Temperature limits change with O-Ring selection. See Electrical Assembly specification sheet for Temperature Class Ratings.
