Intel® 6th-Gen Core™ i7/i5 fanless mobile surveillance system with 8x PoE+, DIO, CAN Bus, 2x 3.5" HDD(RAID 0/1)
Supports Intel® 6th-Gen Core™ i7/ i5/ i3 LGA1151 socket-type CPU
8x 802.3at PoE+ ports and 2x GbE ports
2x 3.5" HDD accommodation, support RAID 0/1 with over 24 TB capacity
Dedicated HDD heat-spreader for optimized thermal performance
4x full-size mini-PCIe sockets with SIM support
4-CH isolated DI and 4-CH isolated DO
1x CAN 2.0 port
8~35V wide-range DC input with built-in ignition power control
Patented damping brackets to withstand 1 Grms vibration

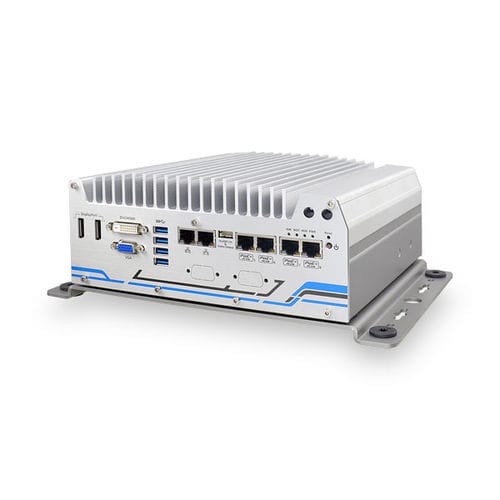

Nuvo-5608VR is Neousys' latest fanless mobile surveillance system designed for real-time video analysis and streaming. It incorporates 6th-Gen Core™ i CPU, IP camera connectivity and massive storage capacity for emerging intelligent surveillance/ security applications.
Featuring eight Gigabit PoE+ ports, Nuvo-5608VR provides sufficient bandwidth to collect high-definition video streams from IP cameras, while its 6th-Gen Core™ i7 CPU is capable of performing real-time video analytics. It accommodates two 3.5" hard drives with RAID 0/1 configuration to support more than 24 TB storage capacity for recording 8-CH, 1080p @H.264 video for over 3 months.
Neousys' patented damping-bracket is shipped with Nuvo-5608VR to protect the system against vibration in harsh mobile environmental conditions.
