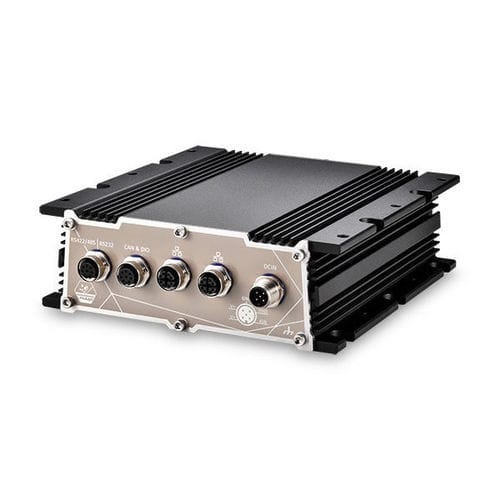

Expansion computer POC-766AWP

embeddedwall-mountedDIN rail

Subtitle
IP67 Waterproof Computer with Intel® Core™ i3-N305, 2x 2.5GbE and isolated COM ports

Key Features

• IP67-rated waterproof and dustproof design
• Intel® Alder Lake Core™ i3-N305 with 8 E-cores
• -25 °C to 70 °C temperature operation
• 2x 2.5Gb Ethernet ports via M12 X-coded connectors
• 1x isolated RS-232, 1x isolated RS-422/485 via M12 A-coded connector
  3x isolated DIO and 1x CAN2.0B via M12 A-coded connector
• 8-35V DC input with ignition power control input via M12 A-coded connector

Overview
POC-766AWP is Neousys' new-generation AWP-series waterproof fanless embedded computer, featuring upgraded performance and enhanced rugged design. Powered by the Intel® i3-N305 processor and supporting DDR5 memory, it delivers a major boost in performance within a fully sealed IP67-rated enclosure. Built with stainless steel and aluminum, it provides two thermal solutions: direct-contact cooling inside metal cabinets and fanless cooling for standalone installation. POC-766AWP ensures reliable operation for demanding industrial and outdoor applications.

Engineered for industrial reliability, POC-766AWP features rugged I/O connectivity designed for demanding field environments. It provides dual 2.5GbE M12 X-coded connectors for secure, vibration-resistant Ethernet connections, as well as one isolated RS-232 and one isolated RS-422/485 port to ensure stable data transmission and protection against electrical surges. The system also supports CAN bus and isolated Digital IO, along with a Mini-PCIe slot for wireless WiFi or LTE modules. Additionally, two internal USB 3.2 ports and one HDMI interface are available for use in non-waterproof environments, offering convenient access for system configuration or peripheral expansion.

POC-766AWP delivers IP67-level protection with an optimized balance between performance and cost. Its compact design and M12 connectivity guarantee protection against moisture, vibration, and dust, ensuring continuous operation in harsh environments. Designed for real-world durability and minimal maintenance, POC-766AWP is ideal for applications such as agriculture, outdoor equipment, and industrial vehicles.

System Core
Processor: Intel® Alder Lake Core™ i3-N305 processor (8C/8T, 1.8/3.8 GHz, 15WTDP)
Graphics: Integrated Intel® UHD Graphics with 32EUs
Memory: 1x DDR5-4800 SDRAM up to 16 GB (one SODIMM socket)
TPM: Supports dTPM 2.0

Front I/O Interface
Ethernet: 2x 2.5Gb Ethernet ports by Intel® I226-IT via M12 X-coded, 8-pin connector
Serial Port: 1x isolated RS-232 port (COM1) and 1x isolated RS-422/485 ports (COM2) via M12 A-coded, 8-pin
CAN Bus & DIO: 1 x isolated CAN2.0B and 1-CH isolated DI and 2-CH isolated DO via M12 A-coded, 8-pin

Rear I/O Interface
USB: 2x USB 3.2 Gen2 x1 ports in type-A connectors
Video Port: 1x HDMI1.4b, Supporting 3840 x 2160 30Hz

Storage Interface
M.2: 1x M.2 2280 M key socket (PCIe Gen3 x4) for NVMe SSD (supports SATA signal)

Internal Expansion Bus
mini-PCIe: 1x full-size mini PCI Express socket with internal micro SIM socket

Power Supply
DC Input: 8~35V DC input with ignition power control input via M12 A-coded, 5-pin connector

Mechanical
Dimension: 161.5 mm (W) x 169 mm (D) x 52.7 mm (H)
Weight: 1.8 kg
Mounting: Wall-mount or DIN-rail mount (Optional)

Environmental
Operating Temperature: -25°C ~ 70°C
Storage Temperature: -40°C ~ 85°C
Humidity: 10%~90%, non-condensing
Vibration: MIL-STD-810H, Method 514.8, Category 4
Shock: MIL-STD-810H, Method 516.8, Procedure I
EMC: CE/FCC Class A, according to EN 55032 & EN 55035
Safety: UL 62368-1, IEC 62368-1
Ingress Protection: IP67

Optional Accessories

• PA-120W-OW: 120W AC/DC power adapter with 20V, 6A DC output, cord end terminals for terminal block. Operating temperature: -30 to 70°C
• AccsyBx-mPCIe-bkt-POC-766AWP: Mini-PCIe thermal bracket kit for POC-766AWP
• DINRAIL-POC-766AWP: DIN-Rail mounting assembly for POC-766AWP
• ThermalPad-90-POC-766AWP: Thermal pad for POC-766AWP, 65.5x164x0.5mm

Technical Specifications

• Processor: Intel® Alder Lake Core™ i3-N305 processor (8C/8T, 1.8/3.8 GHz, 15WTDP)
• Graphics: Integrated Intel® UHD Graphics with 32EUs
• Memory: 1x DDR5-4800 SDRAM up to 16 GB (one SODIMM socket)
• Ethernet: 2x 2.5Gb Ethernet ports by Intel® I226-IT via M12 X-coded, 8-pin connector
• Serial Port: 1x isolated RS-232 port (COM1) and 1x isolated RS-422/485 ports (COM2) via M12 A-coded, 8-pin
• CAN Bus & DIO: 1 x isolated CAN2.0B and 1-CH isolated DI and 2-CH isolated DO via M12 A-coded, 8-pin
• USB: 2x USB 3.2 Gen2 x1 ports in type-A connectors
• Video Port: 1x HDMI1.4b, Supporting 3840 x 2160 30Hz
• M.2: 1x M.2 2280 M key socket (PCIe Gen3 x4) for NVMe SSD (supports SATA signal)
• mini-PCIe: 1x full-size mini PCI Express socket with internal micro SIM socket
• DC Input: 8~35V DC input with ignition power control input via M12 A-coded, 5-pin connector
• Dimension: 161.5 mm (W) x 169 mm (D) x 52.7 mm (H)
• Weight: 1.8 kg
• Mounting: Wall-mount or DIN-rail mount (Optional)
• Operating Temperature: -25°C ~ 70°C
• Storage Temperature: -40°C ~ 85°C
• Humidity: 10%~90%, non-condensing
• Vibration: MIL-STD-810H, Method 514.8, Category 4
• Shock: MIL-STD-810H, Method 516.8, Procedure I
• EMC: CE/FCC Class A, according to EN 55032 & EN 55035
• Safety: UL 62368-1, IEC 62368-1
• Ingress Protection: IP67
