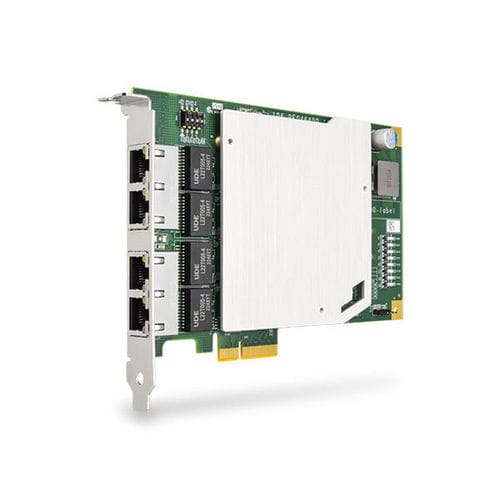

PCIe-PoE464at is a fanless, four-port 5GBASE-T PCIe frame-grabber card with IEEE 802.3at (PoE+), engineered for industrial machine vision. It delivers per-port 5 Gb/s bandwidth, per-port PoE+ up to 25.5 W, jumbo frame support and IEEE 1588 PTP synchronization to support high-resolution inspection, AI vision, multi-camera capture and high-speed production lines. Compared with USB3 Vision, 5GBASE-T provides high-bandwidth image transmission over standard Ethernet cabling up to 100 m, offering greater flexibility for camera placement and factory layout. The card integrates four Realtek RTL8126 controllers, uses an aluminum heat spreader for thermal and mechanical stability, and provides per-port PoE on/off control for flexible power management.

Key features

• 4x IEEE 802.3 5GBASE-T Ethernet ports via Realtek RTL8126 controllers
• Compliant with IEEE 802.3at (PoE+), up to 25.5 W per port
• Supports 5G / 2.5G / 1G / 100M / 10M link speeds
• x4, Gen3 PCI Express interface
• Per-port PoE+ power on/off control
• Supports jumbo frame up to 16 KB
• Supports IEEE 1588 PTP v1/v2 and IEEE 802.1AS time synchronization
• Fanless design, 0°C to 55°C operation (with airflow)

Specification

• Bus Interface: x4, Gen3 PCI Express
• # of 5G Ports: 4x 5GBASE-T Ethernet ports
• Network Protocol Support: IEEE 802.3 for 5G/2.5GBASE-T, 1000BASE-T, 100BASE-TX and 10BASE-T
• PoE Capability: Compliant with IEEE 802.3at-2009 (PoE+), up to 25.5 W per port
• Ethernet Connector: 4x RJ-45
• Cable Requirement: CAT-5e or CAT-6, up to 100 meters
• Power Requirement: Maximum 5.5 A @ 12 V (66 W) from PCIe gold finger
• EMC: CE Class A (EN 55032/55035); FCC Class A (FCC Part 15, Subpart B)
• Operating Temperature: 0°C to 55°C (with airflow)
• Dimension: 167.7 mm (W) x 111.2 mm (H)
