Machine vision computer POC-200
embeddedIntel® Atom E3845quad-core

Machine vision computer - POC-200 - Neousys Technology - embedded / Intel® Atom E3845 / quad-core
Machine vision computer - POC-200 - Neousys Technology - embedded / Intel® Atom E3845 / quad-core
Machine vision computer - POC-200 - Neousys Technology - embedded / Intel® Atom E3845 / quad-core - image - 2
Machine vision computer - POC-200 - Neousys Technology - embedded / Intel® Atom E3845 / quad-core - image - 3
Machine vision computer - POC-200 - Neousys Technology - embedded / Intel® Atom E3845 / quad-core - image - 4
Add to favorites
Compare this product

fo_shop_gate_exact_title

Characteristics

Configuration
embedded
Processor
Intel® Atom E3845, quad-core
Ports
SATA, RS-232, USB 3.0
Size
compact
Domain
industrial, machine vision
Protection level
rugged
Other characteristics
fanless, PoE

Description

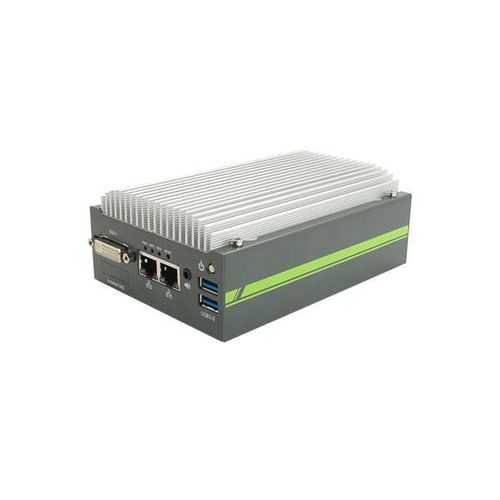

Intel® Atom™ Bay Trail-I ultra-compact fanless rugged embedded computer with PoE Ultra-compact 150 mm x 100 mm foot-print Intel® Atom™ E3845 1.91GHz Quad-core processor Rugged, wide temperature range from -25°C to 70°C fanless operation Two 802.3at (25.5W) Gigabit PoE ports Three USB 3.0 ports Standard 2.5" SATA HDD/SSD accommodation and optional on-board eMMC Up to two RS-232/422/485 ports and two RS-232 ports POC-200 is a breakthrough of Neousys' ultra-compact fanless embedded computer series. Inheriting the concept of favorable POC-100, POC-200 series further incorporates greater computing power and more versatile functions in its 3.5" HDD footprint. The new Intel® Atom™ Bay Trail processor brings a leaping for both arithmetic and graphics performance. With Atom™ E3845 quad-core processor, POC-200 can deliver more than 200% performance over previous D525/D2550 platform. It also feature comprehensive I/O interfaces to make use of the advance of computing power. Two Gigabit Ethernet and three USB 3.1 Gen1 ports are integrated so you can connect GigE/ USB 3.1 Gen1 cameras for vision applications. Its IEEE 802.3at PoE+ option is capable to supply 25.5W each port to power you IP camera for mobile surveillance applications. POC-200 also features up to four COM ports and digital I/O for general-purpose industrial applications. Size is another attractive feature of POC-200. Its 6"x4" footprint makes installation of POC-200 extremely easy. And its -25°C to 70°C operating temperature eliminates the restriction for deployment environment. Neousys provides derivative models with different CPU and I/O configuration so you can always find a fit POC-200 for your application.
