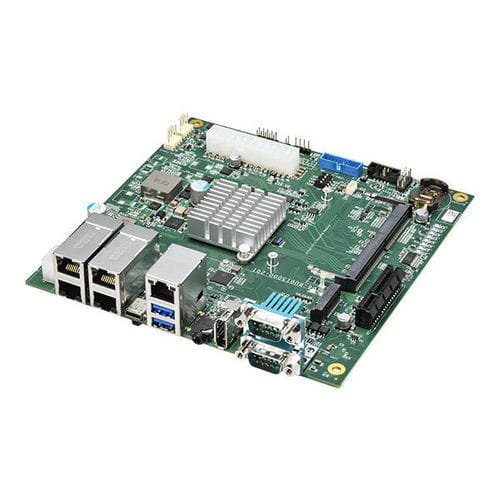

Mini-ITX carrier board Jemii-150 series

Edge AIindustrial

Introduction
The Jemii-150 series is a Mini-ITX carrier board for NVIDIA Jetson Orin NX and Orin Nano modules designed to simplify industrial edge AI integration. It offers BSP alignment with the Jetson Orin Nano Dev Kit and supports direct flashing via NVIDIA SDK Manager to ease software portability and migration. The Mini-ITX form factor allows use of standard chassis, thermal solutions and power supplies for straightforward mechanical integration.

Key features

• Mini-ITX form factor (170 mm x 170 mm)
• Supports NVIDIA Jetson Orin NX and Orin Nano modules (Super Mode-enabled)
• BSP-aligned with Orin Nano Dev Kit; flash-ready via NVIDIA SDK Manager
• 4x GbE powered by Intel® I350-AM4 with PoE++ capability + 1x GbE from module
• 1x PCIe Gen3 x4 expansion slot and 1x M.2 M-key 2280 (PCIe Gen4 x1) for NVMe

Overview / Industrial capabilities
Designed for industrial edge AI applications, the Jemii-150 operates over a wide temperature range of -25°C to 70°C. Power options vary by variant: a 9–32 V DC input (Jemii-150D-PoE) or standard ATX support (Jemii-150A and Jemii-150A-PoE). I/O includes a shared PoE++ budget, isolated digital I/O, hardware-configurable serial ports and a PCIe slot for function expansion. Select variants include Allxon out-of-band (OOB) remote management and a Jemii-150D-PoE option adds CAN 2.0 for AMR/autonomous logistics integration.

Interface summary (selected)
Processor: NVIDIA Jetson Orin™ NX SOM or NVIDIA Jetson Orin™ Nano SOM
Memory: 16GB/8GB LPDDR5 @ 3200 MHz on SOM (Orin NX) / 8GB/4GB LPDDR5 @ 2133 MHz on SOM (Orin Nano)
Ethernet: 4x GbE (Intel® I350-AM4, PoE++ capable) + 1x GbE from Jetson module
PoE Capability: IEEE 802.3bt PoE++ Type 3/4 PSE compliant; up to 90W per port, 100W total budget; backward compatible with 802.3at and 802.3af PDs
USB: 2 x USB 3.2 Gen1 ports; 1 x OTG Type-C
Serial: 1x hardware-configurable RS-232/422/485 (panel) + 1x RS-232 (internal header on some variants)
Video: 1x DisplayPort 1.2
Digital I/O: 3x isolated DI + 3x isolated DO
Audio: 1x 3.5 mm jack (mic-in / speaker-out)
Storage: 1x M.2 M-key 2280 (PCIe Gen4 x1) for NVMe SSD
PCIe: 1x PCIe Gen3 x4 expansion slot
I2C: 1x I2C (2.54 mm pin header)
CAN Bus: 1x CAN 2.0 (internal header) — on Jemii-150D-PoE only
Fan: 2x fan connectors (2.54 mm) + 1x Orin module fan connector (1.25 mm)
Front / Misc: Front panel connector; ATX/AT mode select jumper; debug UART; internal 5V and ground pins

Power / Mechanical / Environmental
Power input: Jemii-150D-PoE: 9–32 V DC; Jemii-150A-PoE: ATX + PCIe 6-pin; Jemii-150A: ATX
Dimensions: Mini-ITX 170 mm x 170 mm
Weight: approx. 200 g
Operating temperature: -25°C to 70°C
Storage temperature: -40°C to 85°C
EMC / Certification: CE / FCC Class A (EN 55032 & EN 55035)

Ordering information (variants)

• Jemii-150D-PoE: Mini-ITX Jetson carrier, 4x PoE++ GbE, 1x GbE, PCIe, 9–32 V DC input
• Jemii-150A-PoE: Mini-ITX Jetson carrier, 4x PoE++ GbE, 1x GbE, PCIe, ATX support + ATX 6-pin
• Jemii-150A: Mini-ITX Jetson carrier, 5x GbE and PCIe, ATX support
• Jemii-150A-PoE-Box: Jemii-150A-PoE with selected Mini-ITX chassis and Flex ATX power
• Jemii-150A-Box: Jemii-150A with selected Mini-ITX chassis and Flex ATX power

Optional accessories (examples)

• AccsyBx-Orin NX/Nano Cooler — cooler kit for Orin NX/Nano module
• PS-250W-ATX — 250W Flex ATX power adapter for Jemii-150A / Jemii-150A-PoE
• PA-160W-OW — 160W AC-DC adapter (20V 8A) for Jemii-150D-PoE
• Cbl-IDC210F-DB9M-20CM1 — 10-pin female to DB9 male cable, 20 cm

Technical specifications

• Form factor: Mini-ITX (170 mm x 170 mm)
• Supported modules: NVIDIA Jetson Orin NX and Orin Nano (Super Mode-enabled)
• SOM compatibility: BSP-aligned with NVIDIA Jetson Orin Nano Dev Kit; supports flashing via NVIDIA SDK Manager
• LAN: 4x GbE (Intel I350-AM4) + 1x GbE from Jetson module
• PoE: IEEE 802.3bt Type 3/4 PSE; up to 90W per port; 100W total budget
• Expansion: 1x PCIe Gen3 x4 slot; 1x M.2 M-key 2280 (PCIe Gen4 x1)
• USB: 2 x USB 3.2 Gen1; 1 x OTG Type-C; 2x internal USB 3.2 Gen1 headers
• Serial: hardware-configurable RS-232/422/485; additional internal RS-232 header on some variants
• DIO: 3x isolated DI, 3x isolated DO
• Audio: Mic-in and speaker-out via 3.5 mm jack
• CAN (variant): CAN 2.0 (Jemii-150D-PoE)
• Power options: 9–32 V DC (Jemii-150D-PoE) or ATX (Jemii-150A / A-PoE)
• Operating temp: -25°C to 70°C; Storage temp: -40°C to 85°C
• Weight: ~200 g
• EMC: CE / FCC Class A per EN 55032 & EN 55035
• Variant management: Jemii-150A / Jemii-150A-PoE include Allxon OOB remote management; Jemii-150D-PoE adds CAN for AMR use cases
