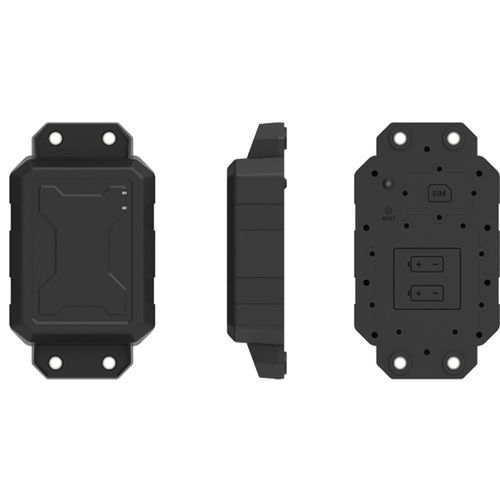

GPRS tracking system T305

GPSIP67LTE

T305 is a LTE Cat.M/NB-IoT/GPRS asset tracker, suitable for the field of valuable asset management (including but not limited to trash bins, construction machinery vehicle etc.) Cat.M1 & Cat.NB1/NB2 10 years standby time Chemical resistance Wide operating temperature Platform - Neoway Cat.M1 module - N27 Dimensions - 201.4 mm x 114.5 mm x 47.0 mm Frequency Bands - NB-IoT: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66/B85 eMTC: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/ B28/B66/B85 : B2/B3/B5/B8 Positioning - /LBS GNSS - Cold start time: 32s Tracking sensitivity: -162 dBm Acquisition Sensitivity: -148 dBm (Cold start) Positioning accuracy: 2.5m CEP50 (Open sky) Battery - 38000mAh 3.6V Li-socl2 internal battery 10 years standby time (One report per day) SIM Card - Micro SIM/eSIM Ingress Protection Rating - Chemical resistance Sensor - G-sensor Power consumption - <10 [email protected] V (Deep sleep) <65 [email protected] V (Average operating current) Environmental condition - Operating temperature (with battery): -30℃ ~ 70℃ Storage temperature range (without battery): -40℃~85℃ Operating humidity: 5% to 95% non-condensing Optional - BLE Light sensor Temperature sensor Certifications - CE, RoHS, WEEE
