Characteristics

Type
fold-up
Other characteristics
high-speed, automatic, large, wind-proof
Applications
exterior, for overhead cranes
Width

Max.: 20 m (65'07")

Min.: 4 m (13'01")

Height

Max.: 20 m (65'07")

Min.: 4 m (13'01")

Description

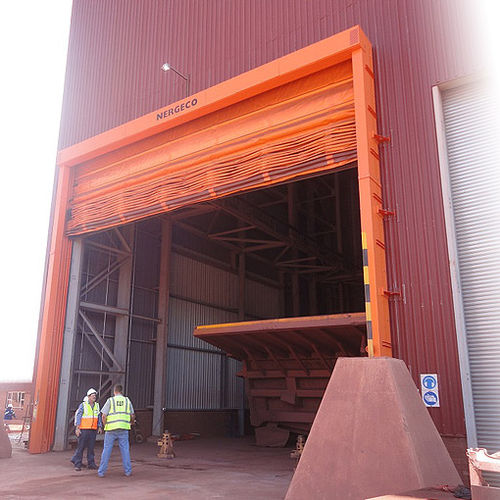

External flexible folding doors To provide effective protection from the environment, our high-speed external flexible doors use Trekking folding technology to provide greater wind resistance, up to category 5, along with better insulation. The Trekking technology for Nergeco Entrematic automatic folding flexible doors provide greater wind resistance by increasing the number of stiffeners distributed from top to bottom of the opening. They tension the curtain evenly down to the bottom of the slides to provide better weatherproofing. They distribute pressure over the whole of the frame uniformly thus providing reliable and continuous operation, even when subjected to a high wind load, without jamming or flapping and without any unnecessary and hazardous weight at the bottom. The closure edge is flexible and deformable both vertically and horizontally. With no rigid feeler bar or system to restrain the curtain in the slides, it can distort without knocking the vehicle on contact. Directly responsive over a height of 40 cm, it registers the distortion and retracts above the obstacle. This patented property allows it to open just in time to provide access, and to close again immediately after at the same speed, thus reducing the exposure time of your building and energy costs due to air exchanges by up to 32%! (Study by the CETIAT laboratory) Lastly, because the curtain does not roll up on itself, it can accommodate flexible wall insulators of any thickness suited to different insulation requirements, for example to stand up to cold or contain heat (in an oven for example), or to reduce acoustic transmission (in the case of high noise levels for example).
