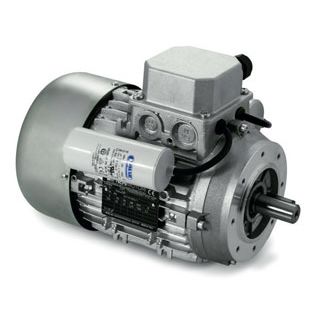

Induction motor ME seriessingle-phase380 V4-pole
Add to favorites
Compare this product
Characteristics
- Type
- induction, single-phase
- Voltage
- 380 V
- Number of poles
- 4-pole, 2-pole, 6-pole
- Applications
- industrial
- Other characteristics
- IEC, high-torque, double
- Power
Max.: 3 kW
(4.08 hp)Min.: 0.03 kW
(0.04 hp)- Intensity
Max.: 18.5 A
Min.: 0.7 A
- Torque
Max.: 16.3 Nm
(12.022263 ft.lb)Min.: 0.3 Nm
(0.221269 ft.lb)- Rotational speed
Max.: 2,900 rpm
(18,221.2374 rad.min-1)Min.: 850 rpm
(5,340.7075 rad.min-1)
Description
Series ME 2/4/6 poles
Single-phase induction motors are suitable for "domestic" environments or where current is only single phase.
These are available according to IEC international standards from size 50 to size 100 and in versions with flange B5, B14 and feet B3.
Single polarities 2/4/6 and double polarities 2/4 poles; Available power range is from Kw 0,06 to Kw 2,2.
