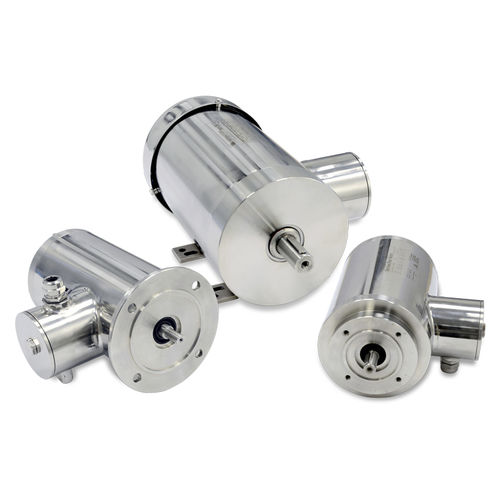

Stainless steel motor MR series
three-phaseasynchronous400 V

stainless steel motor
stainless steel motor
stainless steel motor
stainless steel motor
stainless steel motor
stainless steel motor
Add to favorites
Compare this product


Characteristics

AC/DC
three-phase
Type
asynchronous
Voltage
400 V, 230 V, 690 V
Protection class
IP69K, corrosion-resistant
Configuration
stainless steel, TENV, TEFC
Efficiency classes
IE3
Number of poles
4-pole, 6-pole, 2-pole
Applications
industrial, food, for the pharmaceutical industry
Power

Min.: 0.18 kW
(0.245 hp)

Max.: 7.5 kW
(10.197 hp)

Intensity

Min.: 0.5 A

Max.: 14.56 A

Torque

Min.: 0.61 Nm
(0.4499 ft.lb)

Max.: 49.1 Nm
(36.2143 ft.lb)

Rotational speed

Min.: 920 rpm
(5,780.53 rad.min-1)

Max.: 2,940 rpm
(18,472.56 rad.min-1)

Description

Stainless steel motors Stainless steel asynchronous electric motors - guaranteeing resistance and hygiene in the food industry. HIGH EFFICIENCY MOTORS Stainless steel AISI 304 electric motors. The range presented by Neri Motori is made up of IEC 72-1 motors. The surface of these motors is extremely easy to clean and withstands the aggressive agents and disinfectants used for plant sanitisation. The corrosion resistance and hygiene characteristics of these motors are further guaranteed by the smooth outer housing and laser-engraved rating plate data, which prevents dirt build-up and reduces the formation of bacteria. All available models have an efficiency class of IE3, including motors with power below 0.75 kW. MAXIMUM CORROSION RESISTANCE All external metal components, including motor shafts, are manufactured in stainless steel. This gives them excellent resistance to corrosion and chemical agents. Such a resistant and paint-free outer surface guarantees a considerably longer lifespan than standard motors, especially in applications where high hygiene levels are required. Protection rating IP69K: IP69K, according to ISO 20653, has been developed for industrial sectors where additional protection against high pressures and high temperatures is required. Typical applications requiring this classification are relate to mobile machinery and the food industry, where the equipment is intensively cleaned with high pressure water or steam.
