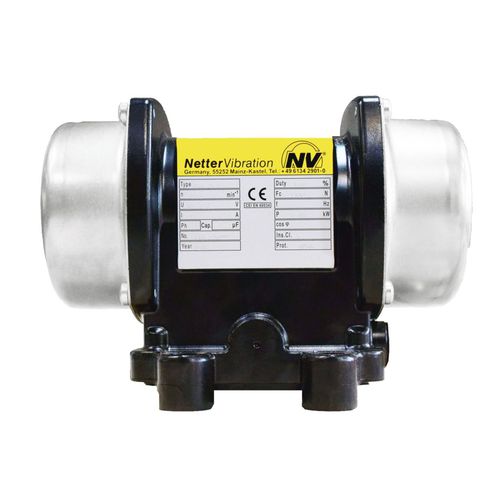

Electric vibrator NED series
for silosexternalcircular

electric vibrator
electric vibrator
electric vibrator
electric vibrator
electric vibrator
electric vibrator
electric vibrator
Add to favorites
Compare this product


Characteristics

Operation
electric
Product applications
for silos
Type
external, circular
Other characteristics
direct current, plastic
Rotational speed

3,000 rpm, 3,600 rpm (18,849.6 rad.min-1)

Power

Max.: 0.53 kW (0.721 hp)

Min.: 0.011 kW (0.015 hp)

Force

Max.: 14,925 N

Min.: 50 N

Description

Series NED electric external vibrators are used whenever, for example conveyor chutes or sieves need to be driven. In addition, these devices can loosen material blockages adhesion in silos. The special feature of the NED is its maintenance-free operation, even in rough environment conditions. The direct current NED units can run at 3,000 min-1 or 3,600 min-1 with a 12 or 24 Volt power supply. Unbalances sitting on each end of the shaft produce a unidirectional sinus-shaped rotation at the frequency of the respective speed of rotation. Generously dimensioned rolling bearing guarantee high operational safety. Features • Circular vibration • Power supply 12/24 V DC • Integrated connector box • Maintenance free operation • Smooth housing surface • Stainless steel unbalance covers • Housing made of plastic available • Protection IP 66-7, ISO class F Applications • On vehicles and mobile machines • Relieving product obstructions • Loosening adhesions
