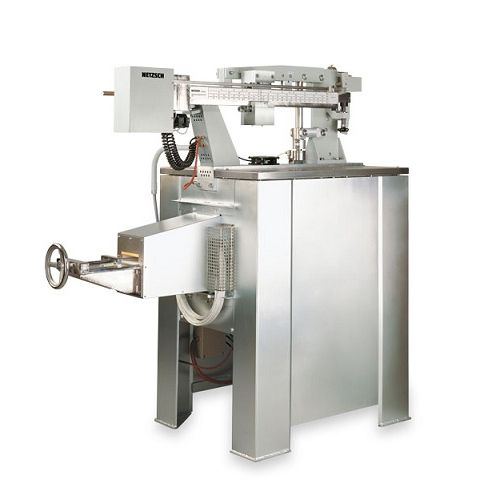

Temperature testing device HMOR 422 D/3

bendinghot bending resistancecontinuous-motion

The modulus of rupture (MOR) is an important variable in the characterization of refractory materials. Determination of the maximum load at high temperatures is a property which, along with other thermophysical properties, is an important parameter for quality control and development of furnace linings. The modulus of rupture is defined as the maximum stress a rectangular test piece of specific dimensions can withstand in a 3-point bending test until it breaks, expressed in N/mm2 or MPa. The International Standard Test Method is described in ISO 5013; test piece dimensions: 150 mm x 25 mm x 25 mm. For determination of the modulus of rupture of refractories up to a temperature of 1500°C and a maximum load of 5000 N (60 N/mm2), NETZSCH offers the model 422 D/3. This model is designed for continuous testing with a 3-point bending device. With optional devices for load and deformation measurement and/or constant deformation rate, additional information about the limits of elasticity and crack propagation in ceramic test pieces can be obtained. Technical Data Heating elements SiC Bending measuring range 10000 µm (2500 µm at 422 E/4) Temperature range RT to 1500°C Bending support: SiC Load: 1 N to 5000 N (2.0 to 12.5 N/s, switchable) Temperature measurement: type S thermocouples Sample dimensions: 150 mm x 25 mm x 25 mm Bending mode: 3-point Atmospheres: air, static
