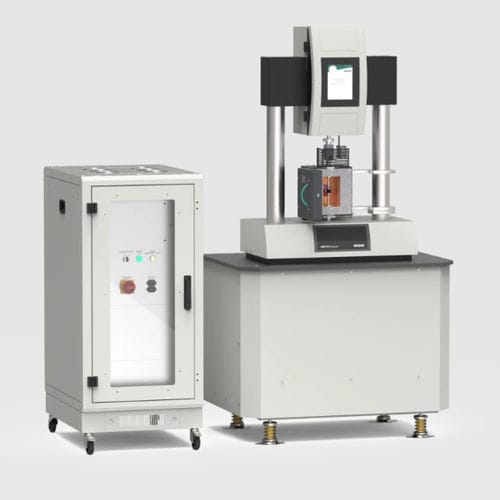

Universal testing machine HBU 523 Gabometer®

forcedurabilityautomatic

Accurate measurements of heat build-up or blowout processes and the determination of the thermal set can be realised by our HBU 523 Gabometer system – a development based on the established Goodrich Flexometer. Both force- and elongation-controlled tests can be carried out with this state-of-the-art type of flexometer. The HBU 523 Gabometer is suitable for improving the thermal dissipation and the durability of semi-finished tire components, dampers or absorbers. Additionally, the new generation allows for measurement of the material stiffness (E modulus, tanδ option) and damping. Your Advantages Heat build-up and blowout tests according to Goodrich (DIN 53533, ASTM D 623, ISO 4666/3, ISO 4666/4, BS 903 part A50 and JIS K 6265) Goodrich flexometer tests Static: strain or stress controlled load mode available Dynamic: strain or stress controlled load mode available Wide frequency range (option) Wide temperature range (option) Automatic Sample Changer (ASC) for fully automatic testing (24h) (option) Simultaneous measurement of the visco-elastic properties (option) Visco-elastic properties in DMTS/DMA mode (option) Hysteresis analysis (option) Pulse load mode available (option) Specifications Technical Data Temperature Range RT to 300°C -160°C up to 300°C with LN2 Dynamic Force up to ± 4000 N Test Specimen Size Diameter: up to 30 mm (optional < 40 mm), depending on model Length: 25 mm Static Force up to ± 6000 N Static Deformation up to 70 mm Frequency Range: 30 Hz (0.0001 Hz to 100 Hz, optional)
